Product Details:
|
Product Name: | Spice Grinder Crusher Pulverizer Grinding Machine | Material: | SS304/316 |
---|---|---|---|
Warranty: | One Year | Feed Size: | <100mm |
Output Size: | 0.5-20mm | Capacity: | 50-1000 Kg/h |
High Light: | granules making machine,sugar crusher machine |

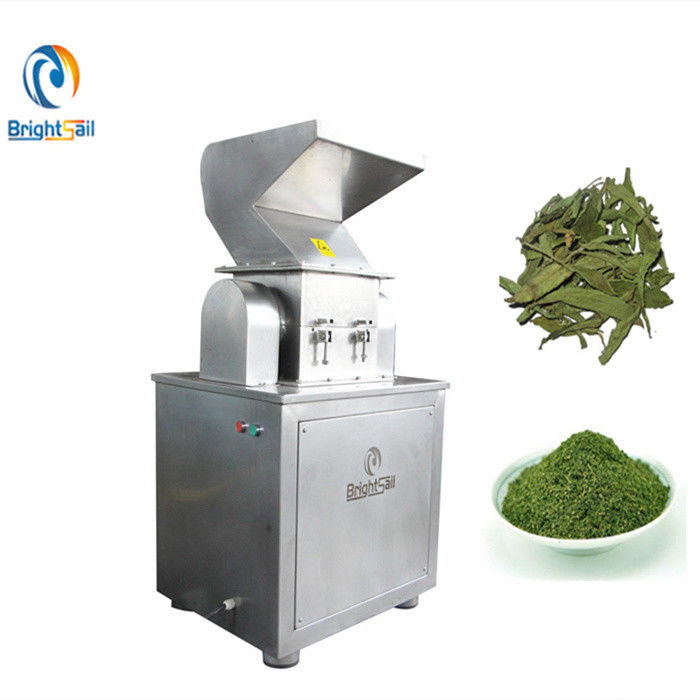

Wheatgrass crusher machine ginger leaf flakes making grinding equipment
BSC coarse crusher is mainly used in Chinese herbal medicine, food, agricultural products, chemical industry and other industries. It processes hard-to-break materials, including broken plastic and rubber, and can also be used as a pre-grinding process. Auxiliary equipment, not limited by material viscosity, hardness, softness and fiber, has good crushing effect on any material.
Working method:

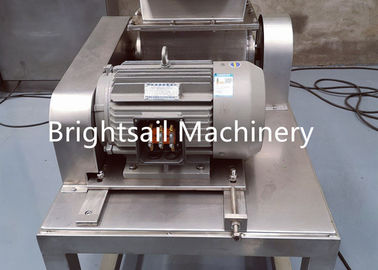

When the crusher works, the motor rotates, the eccentric shaft is driven by V-belt and pulley, and the cymbals move according to the adjusted track. When the raft approaches, the movable raft also periodically swings back and forth to the fixed raft. The material is squeezed, split and bent between the two plates. When the slab is separated, the lower part of the crushing chamber has been broken into materials smaller than the discharge opening, and dropped automatically by the self weight. The materials located at the upper part of the crushing chamber have not been broken into materials smaller than the size of the discharge opening, but only a certain distance from the discharge opening, until the moving jaw firmly fixes the raft again, and the materials falling in the crushing chamber are crushed again; until all the materials in the crushing chamber are discharged from the discharge port.
Main features:
1. Designed according to GMP standard and wholly made of stainless steel, making the medicine and food met the national hygienic requirement.
2.This machine has simple structure, convenient cleaning and low noise, being the ideal equipment for coarse crushing.
3.Change the particle size by changing the screen.
Our company:
Brightsail Machinery is a wholly-owned enterprise integrating sales, production and development. Our company mainly produces shredders, mixers, dryers, packaging machines, etc. After more than 2002 years of continuous development, the company has sold machines to more than 50 enterprises, and has won a good reputation in the industry. It fully meets the needs of customers and adheres to the Quality, service and reputation first are our tenets. Welcome new and old customers to consult and order various suitable powder processing equipment.
Technical data:
Model
|
BSC-200
|
BSC-300
|
BSC-400
|
BSC-600
|
Capacity(kg/h)
|
80-300
|
100-800 |
200-1000
|
500-1500
|
Size of input granules (mm)
|
<100
|
<100
|
<100
|
<100
|
Crushing Fineness(mm)
|
0.5-20
|
0.5-20 | 0.5-20 | 0.5-20 |
Speed of principal axis(rpm)
|
960
|
960
|
960
|
960
|
Motor power(KW)
|
3
|
5.5
|
7.5
|
11
|
Overall Size(L*W*H) (mm)(Type B)
|
900*600*1140
|
900*700*1440
|
900*800*1440 |
1000*900*1440
|
Weight(Kg)
|
200
|
300
|
380
|
500
|
Good commenr from customer:
