Product Details:
|
| Warranty: | One Year | Capacity: | 50-5000 Kg/h |
|---|---|---|---|
| Fineness: | 10-120 Mesh | Material: | SS304/316 |
| Voltage: | Customized | Package: | Container |
| High Light: | vegetable powder making machine,sugar powder making machine |
||

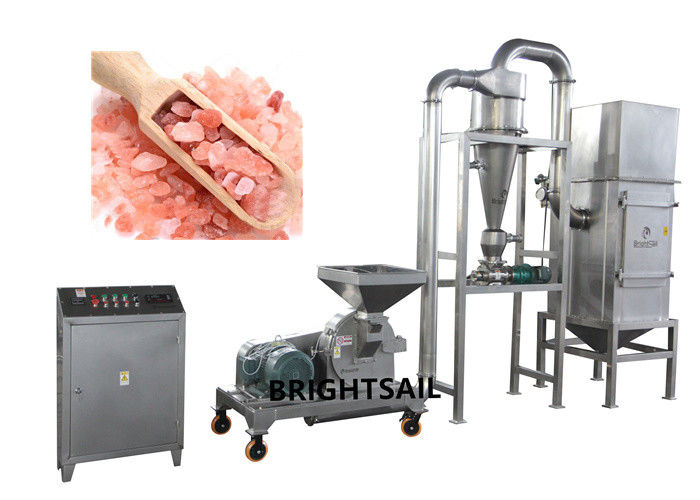

Pink salt food powder grinder machine icing sugar flour mill grinding machinery
Our BSG self absorb grinding set is a kind of high effcient mill designed and developed by my company. This machine has a good grinding effect for crystals materials like sugar, salt,baking soda,etc.It is also suitable for grinding spices, herbs, grains,etc.
There are two kinds of cutters for you to choose.One is hammer type,another is disc type.The grinding effect of disc type is a little better than hammer type, which means, disc type can make finer powder than hammer type. Disc type is more likely to heat up than hammer type. When material is very heat sensitive, hammer type is more recommended.
Working method:
It makes use of the high speed relative movement of the movable fixed disc and the rotating disc to crush the materials through the comprehensive effect of striking and friction of the fluted disc as well as the mutual striking of the materials.the crushed material can be discharged directly from the grinding chamber of the machine and the desired granule size can be obtained by installing screens with different apertures.
Main Features:
1) The whole machine is made of stainless steel, and the inner surface of the enclosure becomes smooth through processing, thus changing the powder residual phenomenon due to the coarse inner surface of the previous models. As a result, the production of medicine, food and chemical products can better conform to the national standard and the GMP requirement.
2) The sieves in the mill chamber is made from good quality stainless steel. You can change the sieve easily when you need another mesh size powder.
3) Wonderful cyclone-discharging system, your desired final evenly powder will be discharged from our automatic rotary discharging device by a discharging motor, which makes the final powder be discharging smoothly, no powder flying.
4) All stainless steel constructed, according to GMP standards, meet the food-grade, chemical-grade, pharmaceutical-grade standards.
Our service:
Guarantee:
Guarantee against defects in materials and workmanship of equipment and parts for one year. Any parts in need of replacement will be shipped free of charge but labor for installation will not be included. Warranty does not cover abuse, user error and quick-wear parts.
Technical support:
1. Technical support by phone, email or MSN/Skype around the clock
2. Friendly English version manual and operation video
3. Engineer available to service machinery overseas
After sales services:
1. Normal machine is properly adjusted before dispatch.
2. You will be able to use the machines immediately.
3. You will be able to get free training advice towards our machine in our factory.
4. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
Technical data:
| Model | BSG-300 | BSG-400 | BSG-500 | BSG-600 | BSG-700 |
| Speed of principal axis(rpm) | 5300 | 4800 | 3800 | 3300 | 2800 |
| Crusher motor(kw) | 5.5 | 7.5 | 15 | 22 | 30 |
| Blower(kw) | 4 | 5.5 | 7.5 | 11 | 15 |
| Discharge motor(kw) | 0.37 | 0.75 | 0.75 | 0.75 | 1.1 |
| Grinding capacity(kg/h) | 50-500 | 100-1000 | 300-1500 | 500-2500 | 1000-5000 |
