Product Details:
|
| Heating Source: | Steam+electricity | Warranty: | One Year |
|---|---|---|---|
| Material: | Stainless Steel 304 | Temperature Range: | 20-160(adjustable) |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| High Light: | oven dryer machine,oven drying machine |
||

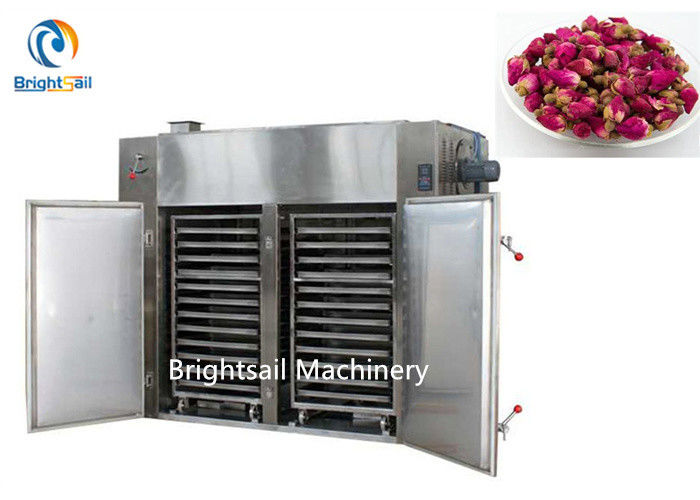

Herb dryer oven machine rose flower ginseng hot air circulation drying machine
BSO drying machine is widely used in pharmaceutical, chemical, food, light industry and heavy industry raw materials and products for heating and dehumidification.
It uses steam or electric heating air, then made a cycling dry with heated air. There is even dry and lower discrepancy of temperature difference in the each side of even. In the dry course of supplying continuously flesh air and discharging hot air so that the even might be in good condition and kept proper temperature and humidity.
Working method:
Its working principle is: the working fluid of the heat pump is compressed by the compressor, becomes high temperature and high pressure gas, enters the condenser, condenses and liquefies the heat, and is used for air heating in the drying room. The moisture in the material is vaporized and evaporated by the form of hot air, and the evaporated water vapor is discharged by the moisture discharge system, thereby achieving the purpose of drying the drying material.
Main features:
1. Most of the hot air circulates in the box, which has high thermal efficiency and saves energy.
2. With the use of forced ventilation, the box is equipped with an adjustable air divider to dry the material evenly.
3. The heat source can be steam, electricity, and far infrared.
3. The machine has low noise and balanced operation. Temperature self-control, convenient installation and maintenance.
4. It has a wide application range and can dry all kinds of materials. It is a universal drying equipment.
Packing and shipping:
Standard wooden case package, or in container without packing, to prevent them from destroying during transportation.
Delivery by Sea, Express(DHL, Fedex etc), By air
We will choose the most safety, convenient and economic way to delivery goods.
Technical data:
| Model | BSO-O | BSO-I | BSO-II | BSO-III | BSO-IV |
| Capacity(kg/batch) | 60 | 120 | 240 | 360 | 480 |
| Blower power(kw) | 0.45 | 0.45 | 0.9 | 1.35 | 1.8 |
| Steam expend(kg/h) | 15 | 20 | 40 | 60 | 80 |
| Electric-heating power(kw) | 9 | 15 | 30 | 45 | 60 |
| Down temp(℃) | ±2 | ±2 | ±2 | ±2 | ±2 |
| Tray(piece) | 24 | 48 | 96 | 144 | 192 |
| Overall size(L*W*H)(mm) | 1400*1200*2000 | 1200*2300*2000 | 2300*2200*2000 | 3200*2200*2000 | 4280*2200*2000 |
| Weight(kg) | 820 | 1500 | 1800 | 2200 | 2800 |
FAQ:
1) What material you want to dry?
2) What is the water content of your raw material?
3) What the final water content you want to get by dryer?
4) About heat source, you will use electricity or steam?
5) How many kgs do you need for per batch?
6) How many work hours you plan to use per day? (like 8 hours, 10 hours,12 hours...etc)
