Product Details:
|
| Heating Source: | Steam+electricity | Warranty: | One Year |
|---|---|---|---|
| Material: | Stainless Steel 304 | Temperature Range: | 20-160(adjustable) |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| High Light: | oven drying machine,air circulation oven |
||

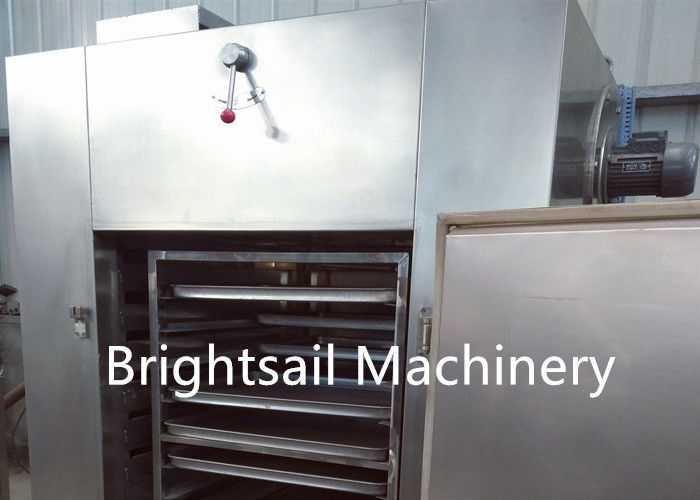

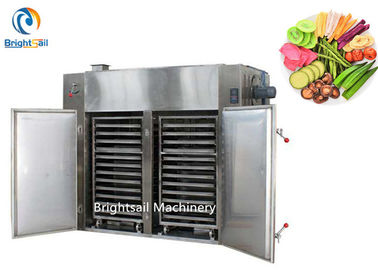

Food grade dryer oven machine vegetables fruits mango banana drying machine
BSO drying machine has a wide range of applications, and is suitable for heating and curing, drying and dehydrating materials and products such as pharmaceuticals, chemicals, food, agricultural and sideline products, aquatic products, and light industry.
The drying box body is made of angle steel and stainless steel plate. Filled with fiberglass insulation between the shell and the working room. The hot air circulation system mainly includes cyclone sub-boards, circulation fans, dehumidification fans and heaters. The hot air circulation oven is equipped with a low noise and high temperature resistant axial flow fan and an automatic temperature control system.
Main structure:
This machine is mainly composed of drying chamber, combustor, electric heating tubes, ventilation system and control system.
1. Drying Chamber: By utilizing stainless steel inside and coated steel plate outside, the drying chamber saves cost while ensures hygiene and corrosion resistance in the drying process.
2. Combustor: To cope with the smoke and fume produced during the process, the combustor is connected with a chimney, efficient and convenient.
3. Ventilation: When it comes to moisture control, the ventilation system plays an important role in balancing the moisture and air in the machine.
4. Control System: The control cabinet controls the electric heating tubes and fans. Additionally, it is installed with a temperature and moisture tester, which gives a convenient way to user for knowing the present condition.
Main features:
Most of the hot air circulates in the box, with high thermal efficiency and energy saving. Forced ventilation is adopted, and the box is equipped with an adjustable air divider to make the material evenly dry. Heat sources can be steam, electricity, and far infrared. The machine has low noise and stable operation. Temperature self-control, convenient installation and maintenance. It is widely used to dry various materials. It is a universal drying equipment.
Our company:
Brightsaill Machinery Co., Ltd is focus on the research of powder equipment, such as packaging machine, China packaging machine, chemical powder mixer machine, spice grinding machine... etc. Our products can be applied in food, medicine, chemical and other industries and had won a good reputation.
After 15 year's development and accumulation, our company has been one of the most influential equipment manufacturers in the industry. And we wish to grow up and develop together with all new and old customers.
Technical data:
| Model | BSO-O | BSO-I | BSO-II | BSO-III | BSO-IV |
| Capacity(kg/batch) | 60 | 120 | 240 | 360 | 480 |
| Blower power(kw) | 0.45 | 0.45 | 0.9 | 1.35 | 1.8 |
| Steam expend(kg/h) | 15 | 20 | 40 | 60 | 80 |
| Electric-heating power(kw) | 9 | 15 | 30 | 45 | 60 |
| Down temp(℃) | ±2 | ±2 | ±2 | ±2 | ±2 |
| Tray(piece) | 24 | 48 | 96 | 144 | 192 |
| Overall size(L*W*H)(mm) | 1400*1200*2000 | 1200*2300*2000 | 2300*2200*2000 | 3200*2200*2000 | 4280*2200*2000 |
| Weight(kg) | 820 | 1500 | 1800 | 2200 | 2800 |
