Product Details:
|
| Heating Source: | Steam+electricity | Warranty: | One Year |
|---|---|---|---|
| Material: | Stainless Steel 304 | Temperature Range: | 20-160(adjustable) |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| High Light: | oven drying machine,air circulation oven |
||

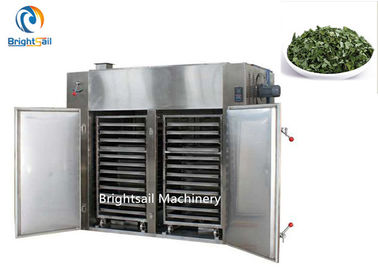

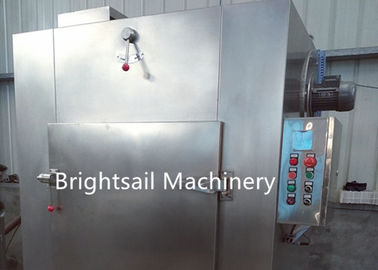

SS304 moringa leaf dryer oven machine tea leaf wheat grass drying equipment
BSO drying machine is a multifunctional drying device, which mainly circulates inside the box through the forced hot air heated by the electric heating tube or the steam heat exchanger to enhance the heat transfer and achieve the effect of drying the material.
It adopts steam heater or far infrared heating element as heat source, the maximum working pressure of steam heater is 0.8MPa, forbid over pressure use. If the oven temperature is required to reach 120~140℃, that is, the steam pressure should be in the range of 0.4~0.8MPa. If the temperature requirement is 80~120℃, that is, the steam pressure should be within the range of 0.2~0.4MPa.
Working Principle:
Its working principle is that used steam or electric heating air, then made a cycling dry with heated air. There are even dry and lower discre-paney of temperature difference in the each side of even. In the dry course of suppling continuously flesh air and discharging hot air so that the even might be in good condition and kept proper temperature and humidity.
Main features:
Most hot air is circulated in the oven. The Heat efficiency is high and the energy is saved. By using the forced ventilation function, there are adjustable air distribution plates inside the oven. The materials can be dried uniformly. The heating source might be steam, electricity and far infrared. With a wide selection. The whole machine is low in the noise. The operation is in balance. The temperature is controlled automatically. The installation and maintenance are easy. The application is wide. The machine can be used for drying various materials and is a versatile drying equipment.
Main structure:
The machine is mainly composed of a drying chamber, a combustion chamber, an electric heating pipe, a ventilation system and a control system.
1. Drying chamber: The interior is made of stainless steel and the outside is coated with steel plate, which saves costs while ensuring the sanitation and corrosion resistance of the drying process.
2. Combustion chamber: In order to deal with the smoke and dust generated during the combustion process, the combustion chamber is connected to the chimney, which is efficient and convenient.
3. Ventilation: In terms of humidity control, the ventilation system plays an important role in balancing the humidity and air inside the machine.
4. Control system: The control cabinet controls the electric heating tube and fan. In addition, it is also equipped with a temperature and humidity tester to facilitate users to understand the current situation.
Technical data:
| Model | BSO-O | BSO-I | BSO-II | BSO-III | BSO-IV |
| Capacity(kg/batch) | 60 | 120 | 240 | 360 | 480 |
| Blower power(kw) | 0.45 | 0.45 | 0.9 | 1.35 | 1.8 |
| Steam expend(kg/h) | 15 | 20 | 40 | 60 | 80 |
| Electric-heating power(kw) | 9 | 15 | 30 | 45 | 60 |
| Down temp(℃) | ±2 | ±2 | ±2 | ±2 | ±2 |
| Tray(piece) | 24 | 48 | 96 | 144 | 192 |
| Overall size(L*W*H)(mm) | 1400*1200*2000 | 1200*2300*2000 | 2300*2200*2000 | 3200*2200*2000 | 4280*2200*2000 |
| Weight(kg) | 820 | 1500 | 1800 | 2200 | 2800 |
