Big Capacity Powder Screw Conveyor Feeder Systems Corn Maize Flour Vacuum Feeder

Big Capacity Powder Screw Conveyor Feeder Systems Corn Maize Flour Vacuum Feeder
Big Capacity Powder Screw Conveyor Feeder Systems Corn Maize Flour Vacuum Feeder Big Capacity Powder Screw Conveyor Feeder Systems Corn Maize Flour Vacuum Feeder

Large Image :  Big Capacity Powder Screw Conveyor Feeder Systems Corn Maize Flour Vacuum Feeder

Product Details:
Place of Origin: China
Brand Name: Brightsail
Certification: CE ISO
Model Number: ZKS
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: Wooden case or container
Delivery Time: 25-30 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30 sets per month

Big Capacity Powder Screw Conveyor Feeder Systems Corn Maize Flour Vacuum Feeder

Description
Product Name: Powder Granule Vacuum Feeder Feeding Conveying Machine Application: Food,chemical,pharmaceutical,etc
Usage: Conveying Powder Or Granule Capacity: 400-6000kg/h
Motor: 1.1-7.5kw Material: SS304/316
Warranty: One Year Package: Wooden Case Or Container
High Light:

powder screw conveyor

,

vacuum conveyor for powder

Big capacity poultry food conveyor feeder systems corn maize flour vacuum feeder

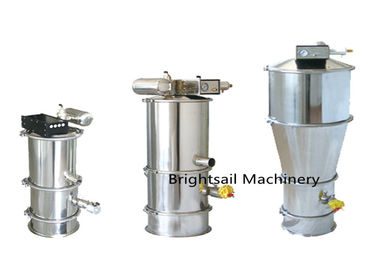

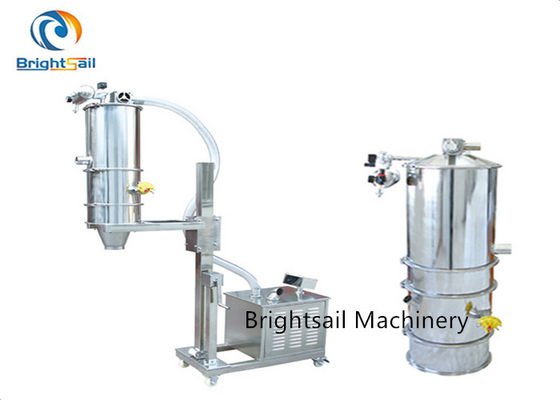

Our ZKS vacuum feeding machine is a kind of by means of vacuum suction to transmit granular and powdered materials clean airtight pipeline equipment, using the vacuum pressure and environmental space, form gas flow inside the pipeline, drive the powder material movement, thus finish powder conveying.

It can automatically convey materials to grinding machine, mixing machine, sifting machine,packaging machines, injection
molding machine, and other equipment in the hopper.



Working method:

ZKS vacuum feeding machine uses a vacuum pump to draw air, so that the inlet of the suction nozzle and the entire system are in a certain vacuum state. Gas and material separation. The separated materials enter the receiving equipment. Feeding and discharging are completed by the pneumatic three-way valve continuously opening and closing, and the opening and closing of the pneumatic three-way valve is controlled by the control center.



Main features:
1. The whole airtight transportation, avoiding the dust, also fundamentally put an end to the influence of the outside on the material.
2. The structure is simple, easy to disassemble and clean.
3. The interior smooth without dead Angle, no material residue, in line with the state's requirements for medicine, food and military industry.
4. There are few moving parts, running, maintenance, maintenance and low cost.
5. With high degree of automation, it is easy to form automatic production process with upstream and downstream equipment.
6. It is beautiful, generous and has a strong visual effect, which has a good effect on improving corporate image.
7. It produces low noise, small vibration and small influence on upstream and downstream equipment.



Our company:
Founded in 2002, Brightsail Machinery is specialized in making grinding machines, mixing machine, drying machine, feeding machines, packing machines and other powder solution equipments. Our products are widely applied in food, chemical, pharmaceutical and other industries,and our company has been one of the most popular suppliers in our industry.
After years of development, we have sold our products to more than 50 countries,we have enough experience and technology to help you to find a most suitable machine.We wish to grow up and develop together with all new and old customers.Welcome new and old friends to cooperate with us.



Technical data:

Model ZKS-1 ZKS-2 ZKS-3 ZKS-4 ZKS-6 ZKS-7 ZKS-20
Motor(kw) 1.1 2.2 3 5.5 5.5 7.5 11
Capacity(kg/h) 400 600 1200 2000 3000 4000 6000
Remark:Conveying capacity is measured when pipe is 4 meter long and conveying material is flour.The longer the pipe is,capacity will drop.And capacity has great relationship with characteristic of materails.
