Product Details:
|
| Product Name: | Screw Feeder Conveyor Feeding Conveying Machine | Usage: | Conveying Powder Or Granule |
|---|---|---|---|
| Capacity: | 400-6000kg/h | Motor: | 1.1-7.5kw |
| Material: | SS304/316 | Voltage: | Customized |
| Warranty: | One Year | Package: | Wooden Case Or Container |
| High Light: | powder conveying systems,powder screw conveyor |
||

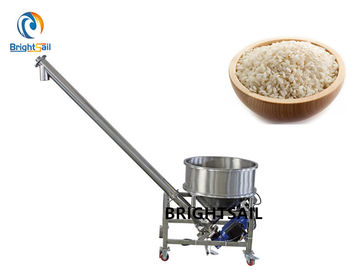

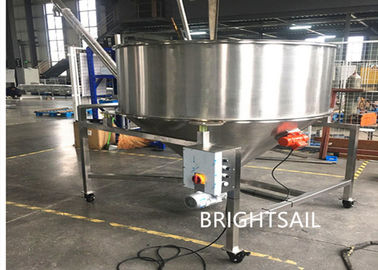

Grain conveyor feeder systems screw type wheat rice conveying equipment with CE
Our BS screw feeder machine is mainly used in conveying powder, particles of ascension, suitable for food, chemical, pharmaceutical and other industries.It can be conneted with grinders, mixers, packing machines, etc.
Compared with other transportation equipment, screw conveyor with the machine section size small, reliable sealing performance is good, smooth operation, screw and feeding tube adopts new structure of subsection and demountable facilitate transport clean and safe operation, convenient maintenance, etc.
Main features:
1. Simple structure, easy operation.
2. Small section of whole machine, being suitable for horizontal or tilted transportation.
3. Stable transportation so as to play a good role.
4. Excellent sealing performance so as to have advantages under he situation that has more dust and made higher request on the environment and to avoid the dust phenomenon in the process of transportation.
Our service:
1) our engineers are able to go abroad to install the machines
2) one year quality assurance
Guarantee against defects in materials and workmanship of equipment and parts for one year. Any parts in need of replacement will be shipped free of charge but labor for installation will not be included. Warranty does not cover abuse or user error.
3) 24-hour on line service,any questions will be replied within 24 hours
4) Our company can agree payment by T/T, L/C,Cash.
5) Our company has our own exporting right and forwarder.
Our company:
Brightsail Machinery is engaged in the development, design, manufacture and sale of grinding machines, mixing machine, drying machine, conveying machine, packing machine, etc. Our company over the years adopts many new ideas, absorbs a wide range of advanced technologies worldwide as well as excellent processing and testing equipment, and takes a reliable strict quality guarantee system and an important after-sales service system to win customers' trust in the industry.
If you are interested in our products, please feel free to contact us!
Technical data:
| Model | BS-1 | BS-2 | BS-3 | BS-4 | BS-5 | BS-6 | BS-7 | BS-8 | BS-10 |
| Capacity | 1m3/h | 1.5m3/h | 2.5m3/h | 3.5m3/h | 4.5m3/h | 5.5m3/h | 8m3/h | 10m3/h | 20m3/h |
| Speed | 20-140 | 20-140 | 20-140 | 20-140 | 20-140 | 20-140 | 20-140 | 20-140 | 20-140 |
| Pipe Diameter | Ø89 | Ø102 | Ø114 | Ø127 | Ø133 | Ø141 | Ø159 | Ø168 | Ø219 |
| Power | 1.1kw | 1.5kw | 1.5kw | 1.5kw | 1.5kw | 2.2kw | 3.0kw | 3.0kw | 4.0kw |
| Weight | 100kg | 115kg | 130kg | 140kg | 150kg | 170kg | 200kg | 220kg | 270kg |
| Hopper Volume | 100L | 120L | 200L | 200L | 200L | 200L | 200L | 200L | 200L |
