Product Details:
|
Product Name: | Screw Feeder Conveyor Feeding Conveying Machine | Usage: | Conveying Powder Or Granule |
---|---|---|---|
Capacity: | 400-6000kg/h | Motor: | 1.1-7.5kw |
Material: | SS304/316 | Voltage: | Customized |
Warranty: | One Year | Package: | Wooden Case Or Container |
Highlight: | powder conveying systems,vacuum conveyor for powder |

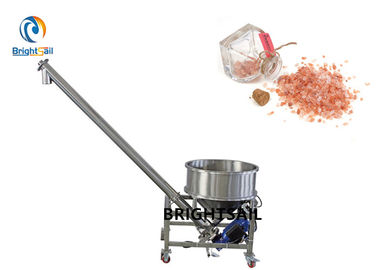

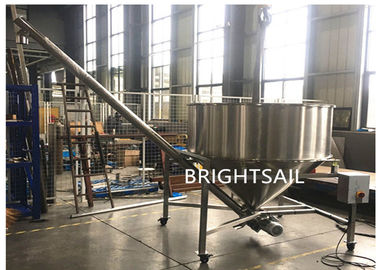

SS304 conveyor feeder systems salt sugar powder screw type feeding machine
Our BS screw feeder machine is specially designed and manufactured for the plastic and powder production and processing industry. The contact part between the screw feeder and the material is made of stainless steel. It can be used with various specifications of grinding machines, mixing machines, packaging machines, etc. It is widely used for feeding various powder, granular, recycling and crushing materials.
Main features:
1. The machine is especially suitable for conveying all kinds of powdery material,also can be used for conveying all kinds of granular or flake materials.
2. Using unique designed stainless steel screw-shaped blade;
3. High conveying capacity,safe and reliable operation,easy to disassemble and clean;
4. Good adaptability and long service life;
5. Good sealing quality and rigidity;
6. It can be customized as custormer requests;
7. It can add vibrator for speed up the feeding speed.
Our service:
1) Pre-service:
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2. Make plans for choice according to the needs and special requirements of users in different sectors;
2) Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents as customer’s requirements.
3) After-sale service
1. Assist clients to prepare for the first construction scheme;
2. Install and debug the equipment;
3. Examine the equipment;
4. Take initiative to eliminate the troubles rapidly;
5. Provide technical support;
6. Establish long-term and friendly relationship.
Our company:
Brightsail Machinery has passed the ISO9001 international system certification, the main products through the CE certification, with self-import and export rights. The company can also design, customize and install projects for customers on site. Customers are located all over the country and exported to the United States, Britain, Australia, Indonesia, India, Germany and other 50 countries, and we have received the good comments from our customers.
Should you have any interest in our products, please don't hesitate to contact us!
Technical data:
Model | BS-1 | BS-2 | BS-3 | BS-4 | BS-5 | BS-6 | BS-7 | BS-8 | BS-10 |
Capacity | 1m3/h | 1.5m3/h | 2.5m3/h | 3.5m3/h | 4.5m3/h | 5.5m3/h | 8m3/h | 10m3/h | 20m3/h |
Speed | 20-140 | 20-140 | 20-140 | 20-140 | 20-140 | 20-140 | 20-140 | 20-140 | 20-140 |
Pipe Diameter | Ø89 | Ø102 | Ø114 | Ø127 | Ø133 | Ø141 | Ø159 | Ø168 | Ø219 |
Power | 1.1kw | 1.5kw | 1.5kw | 1.5kw | 1.5kw | 2.2kw | 3.0kw | 3.0kw | 4.0kw |
Weight | 100kg | 115kg | 130kg | 140kg | 150kg | 170kg | 200kg | 220kg | 270kg |
Hopper Volume | 100L | 120L | 200L | 200L | 200L | 200L | 200L | 200L | 200L |
