Product Details:
|
| Product Name: | Dry Food Spice Grain Powder Vacuum Feeding Conveying Machine | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Usage: | Conveying Powder Or Granule | Capacity: | 400-6000kg/h |
| Motor: | 1.1-7.5kw | Material: | SS304/316 |
| Warranty: | One Year | Package: | Wooden Case Or Container |
| High Light: | powder conveying systems,vacuum conveyor for powder |
||

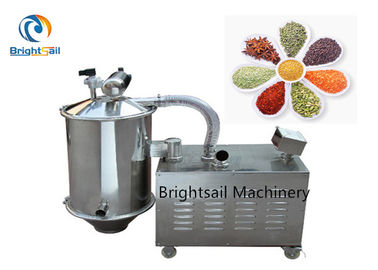

Vacuum conveyor feeder systems masala curry spices powder conveying machine

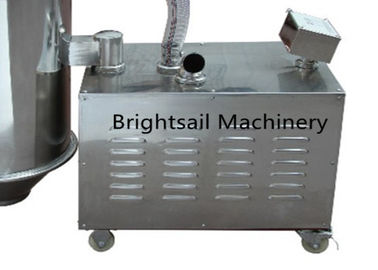

Our ZKS vacuum feeding machine is made up of such configurations as vacuum pumping (without oil and water ), material sucked port (stainless steel ),ransferring soft pipe, PE filter or filter made of SS 316L, revering blowing compressed air device, pneumatic discharging device, vacuum material bowl and autsmatical device for controlling the material posi- tion etc.
It can be widely used in magnetic materials industry, food processing industry, plastic processing industry, coatings industry, chemical industry and pharmaceutical industry etc.
Working method:
When compressed air goes through the Vacuum generator, vacuum generators produce negative pressure to form the vacuum airflow, and thus materials are sucked into suction nozzle and reach the chamber of feeding machine through the suction tube. The filter separates materials from air completely. when the chamber is full of materials, the controller will automatically cut off the gas source and vacuum generators stop working. At the same time the chamber door opens automatically and materials fall into the hopper of equipment. Meanwhile, compressed air cleans the filter automatically through the pulse back-flushing valve. The feeding machine will be started automatically to load materials again, when the time is up or the material level sensor sends out signals.
Main features:
1. The whole machine is powered by vortex air pump, which is oil-free, waterless and maintenance-free.
2. The whole conveying process is completed in a completely closed state, eliminating dust pollution.
3. The machine is of building block type, and the barrel body is connected with quick opening clamp, which is convenient for disassembly and cleaning.
4. Less energy consumption, low noise and convenient control.
Technical data:
| Model | ZKS-1 | ZKS-2 | ZKS-3 | ZKS-4 | ZKS-6 | ZKS-7 | ZKS-20 |
| Motor(kw) | 1.1 | 2.2 | 3 | 5.5 | 5.5 | 7.5 | 11 |
| Capacity(kg/h) | 400 | 600 | 1200 | 2000 | 3000 | 4000 | 6000 |
| Remark:Conveying capacity is measured when pipe is 4 meter long and conveying material is flour.The longer the pipe is,capacity will drop.And capacity has great relationship with characteristic of materails. | |||||||
FAQ:
What should we know when you choose a vacuum conveyor?
1. Materials name and density that you want to conveying(how's the liquidity of material)?
2. What's the capacity per hour?
3. We also need to know the horizontal distance and vertical high that you want to conveying?
4. What equipment you want to conveying materials to?
