Product Details:
|
| Product Name: | Powder Granule Vacuum Feeder Feeding Conveying Machine | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Usage: | Conveying Powder Or Granule | Capacity: | 400-6000kg/h |
| Motor: | 1.1-7.5kw | Material: | SS304/316 |
| Warranty: | One Year | Package: | Wooden Case Or Container |
| High Light: | powder screw conveyor,vacuum conveyor for powder |
||

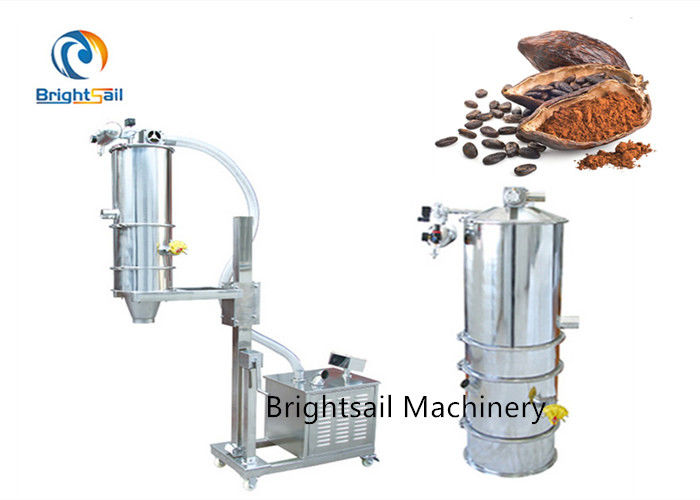

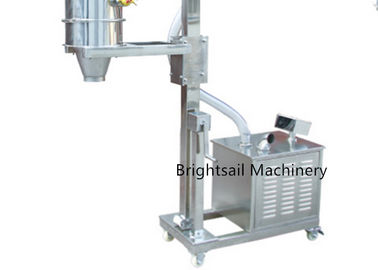

SS304 food grade conveyor feeder systems cocoa powder vacuum feeding machine
Our ZKS vacuum feeding machine is the most advanced, ideal and perfect vacuum conveying equipment of powder material, granular material, powder mixture. It can automatically transport a variety of materials to the hoppers of packaging machines, grinder etc, also, it can convey mixed material directly to the mixer, thereby reducing the labor intensity of workers and solving the feeding problem when the powder spills etc.
Working method:
The ZKS vacuum feeder unit uses a vortex air pump for air extraction. The inlet of the absorbent faucet and the entire system are in a vacuum state. The powder particles of the material are absorbed into the material faucet by the surrounding air, forming air flowing with the material. Through the tubes of absorbent material, they reach the hopper. Air and matter are separated in it. The separated material is sent to the receiving device. The control center controls the "on / off" state of the pneumatic three-way valve for feeding or unloading. The vacuum feeding device is provided with a compressed air blowing device. The compressed air pulse blows back the filter at each discharge. The powder on the surface of the filter is blown away to ensure a normal absorbing material.
Main features:
1. Good flexibility,optionally adjusting the suction pipe
2. Simple installation and easy maintenance
3. The pipeline is sealed and transported to eliminate dust pollution
4. Intermittent feeding materials
5. Using compressed air as primary energy sources
6. Materials are not adhering to the inner surface of the conveyor
Our service:
Pre-sale service.
1. 24 hours service available(for emergency,please call us directly)
2. Generally,we provide solutions within 24 hours after getting all necessary information
3. Quotation will be provide after solutions confirmed by client
4. Other necessary matters.
In-sale service.
1. Detailed drawing will be provided for confirmation
2. Arrange the production and suggest update the progress
3. Arrange the package,shipping mark and shipment
4. Provide necessary documents for customs clearance.
After-sales service.
1. 24 hours service is available
2. All the products have at least 12 months warranty period(except the quick-wear part)
3. All the spare parts will be provided at cost price
4. We can provide free technical guidance and training.
Technical data:
| Model | ZKS-1 | ZKS-2 | ZKS-3 | ZKS-4 | ZKS-6 | ZKS-7 | ZKS-20 |
| Motor(kw) | 1.1 | 2.2 | 3 | 5.5 | 5.5 | 7.5 | 11 |
| Capacity(kg/h) | 400 | 600 | 1200 | 2000 | 3000 | 4000 | 6000 |
| Remark:Conveying capacity is measured when pipe is 4 meter long and conveying material is flour.The longer the pipe is,capacity will drop.And capacity has great relationship with characteristic of materails. | |||||||
