Product Details:
|
| Product Name: | Powder Granule Vacuum Feeder Feeding Conveying Machine | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Usage: | Conveying Powder Or Granule | Capacity: | 400-6000kg/h |
| Motor: | 1.1-7.5kw | Material: | SS304/316 |
| Warranty: | One Year | Package: | Wooden Case Or Container |
| High Light: | powder conveying systems,powder screw conveyor |
||

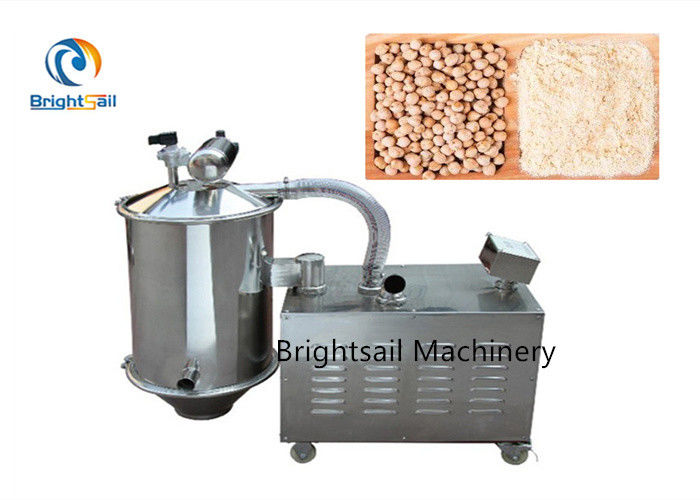

Chickpea flour conveyor feeder systems soybean powder vacuum feeding machine
Our ZKS vacuum feeding machine is the most advanced, perfect vacuum conveying equipment of power material, power-granular mixture. It can automatically transport a variety of materials to mixing machine, packing machine, injection molding machine, grinder etc, with the advantage of cost reducing and no power pollution.
It consists of vacuum pump(no oil and water), stainless steel suction tube, flexible hose, PE filter or SUS316 filter, compressed air cleaning device, pneumatic discharging device, vacuum hopper and automatic level control device. This machine can reach GMP standard and is the ideal feeding to food industry and pharmaceutical industry.
Working method:
When the compressed air supply vacuum generators, vacuum generators produce negative pressure to form a vacuum airflow, the conveyed material arrives at the silo of the feeder through the feeder port . the filter in the hopper will separate completely the material and air.When the silo is filled with the materials, the controller will automatically cut off the gas source, and vacuum generators stop working while the silo door automatically opens, then the materials falls into the hopper of the receiving device.Meanwhile the compressed air will clean the filter automatically by pulse reverse valve . When controller reach the settled time or the level inductor send a signal of feeding materials, the vacuum feeder will repeat automatically this working process.
Main features:
1. Using compressed air as primary energy sources.
2. Meet GMP standard.
3. Solving the stratification of powder and granules.
4. Eliminate the static electricity.
5. Made of nontoxic and corrosion resistant materials.
6. Leakage free capsule, to prevent cross contamination.
7. Materials are not adhering to the inner surface of the conveyor.
8. Intelligent control and high automation.
9. Modular structure, easy to clean and dismantle.
10. Small and light ,easy to install.
Our company:
Brightsail Machinery is specialized in making grinding machines, mixing machines, drying machines, conveying machines, packing machines and other powder solution equipments.Our company has passed the ISO9001 international system certification, the main products through the CE certification, with self-import and export rights. The company can also design, customize and install projects for customers on site. Customers are located all over the country and exported to the United States, Britain, Australia, Malaysia, Indonesia, South Korea, Bangladesh and Russia. , India, Africa, Europe, Southeast Asia and other countries.
Technical data:
| Model | ZKS-1 | ZKS-2 | ZKS-3 | ZKS-4 | ZKS-6 | ZKS-7 | ZKS-20 |
| Motor(kw) | 1.1 | 2.2 | 3 | 5.5 | 5.5 | 7.5 | 11 |
| Capacity(kg/h) | 400 | 600 | 1200 | 2000 | 3000 | 4000 | 6000 |
| Remark:Conveying capacity is measured when pipe is 4 meter long and conveying material is flour.The longer the pipe is,capacity will drop.And capacity has great relationship with characteristic of materails. | |||||||
