Product Details:
|
| Packaging Type: | Stand-up Pouch, Bags, Pouch | Bag Type: | Pillow Bag,Stand Pouch |
|---|---|---|---|
| Application: | Food, Commodity, Medical, Chemical..etc | Warranty: | One Year |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| High Light: | powder packaging machine,spice powder packing machine |
||

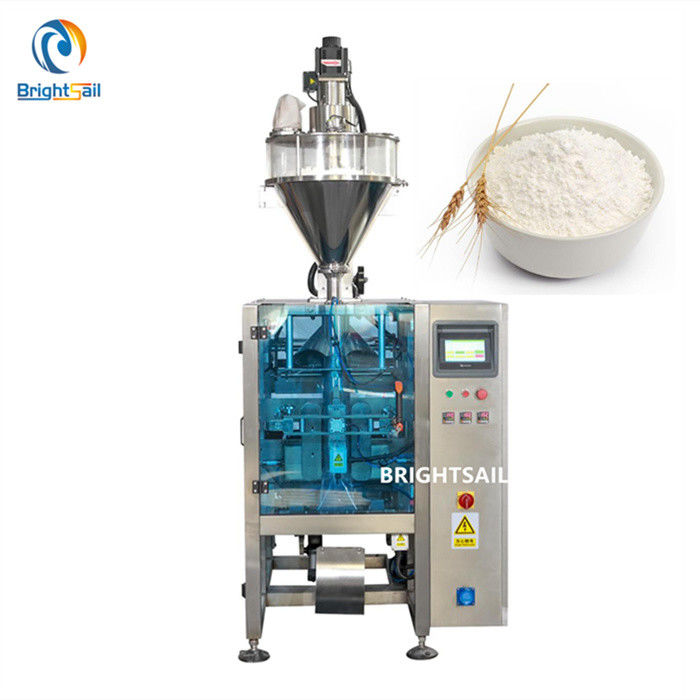

Grain flour filling packing machine wheat rice cassava powder packaging machine
BSPM powder filling machine is suitable for widely suitable for food, medicine, chemical industry, such as food additive, milk powder, bean powder, coffee powder, tea powder, instant powder, flour powder, starch, medical powder, and cosmetic powder etc.
This machine adopts PLC servo system, pneumatic control system and super touch screen to form the drive control center, which maximizes the control accuracy, reliability and intelligence of the whole machine.
Main features:
1. Efficient: Bag - making, filling, sealing, cutting, heating, date / lot number achieved in one time;
2. Intelligent: Packing speed and bag length can be set through the screen without part changes;
3. Profession: Independent temperature controller with heat balance enables different packing materials;
4. Characteristic: Automatic stop function, with safe operation and saving the film;
5. Convenient: Low loss, labor saving, easy for operation and maintainance;
6. Alarming function for specific output, Automatic display of packaging speed;
7. Optional ink roll printer for the batch number and expiration date;
8. Flat cutting, pattern cutting, linking cutting can be realized by changing the tools.
Our company:
Brightsail Machinery specializes in the research and development, production, sales and service of grinders, mixers, sieving machines, overall powder solutions, welding services, welding machines, metal processing, and chemical powders.
Since the establishment of our company, we have always adhered to the principle of quality first and based on the concept of customer-centricity. In the production process, we always focus on details to ensure the high performance and high quality of each component and equipment to ensure the machine Stable operation in customer plants.
In addition, we have obtained CE and ISO certificates. In 2018, the company won the Alibaba Group's Top 100 Sales Award in East China. Products are exported to the United States, Canada, Germany, Australia, Europe, Africa, South Asia, Central Asia and other countries and regions. We also welcome OEM and ODM models. Our company's name "Brightseal" is also our hope for all customers and partners worldwide. We hope to grow together and set sail.
Technical data:
| Measure method | Auger dosing | Wrighing feedback tracking |
| Bag-making size |
(W)80-200 mm (L)100-300 mm |
(W)100-250 mm (L) 100-350 mm |
| Filling weight | 10-5000 g(by changing mould) | |
| Packaging precision | ≤1% | |
| Packaging speed | 25-60 bag/min | |
| Power supply | Three phase 380/220 V 50-60HZ | |
| Power | 6 kw | |
| Pressure | 6-8 kg/cm2 | |
| Use tolerance | 0.2 m3/min | |
| Weight | 700 kg | 950 kg |
| Dimension | 1300*1500*2600 | |
