Product Details:
|
| Packaging Type: | Stand-up Pouch, Bags, Pouch | Bag Type: | Pillow Bag,Stand Pouch |
|---|---|---|---|
| Application: | Food, Commodity, Medical, Chemical..etc | Warranty: | One Year |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| High Light: | bag packing machine,spice powder packing machine |
||

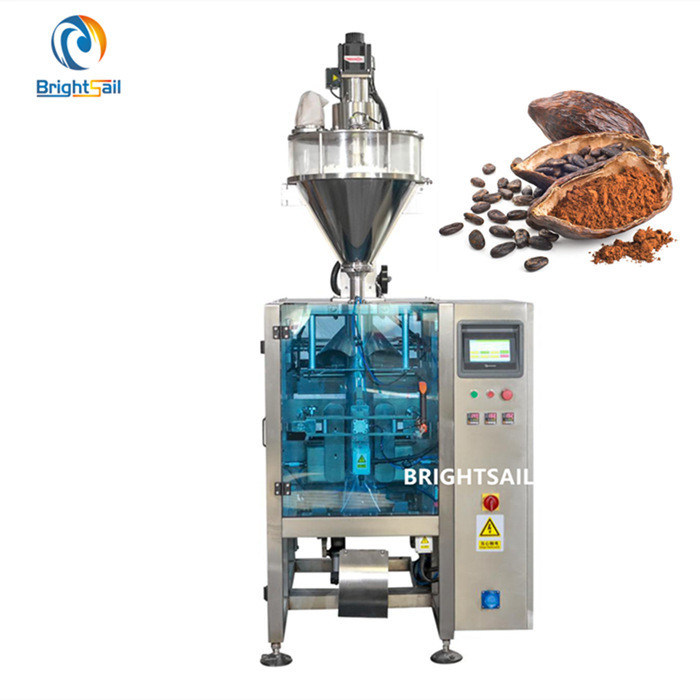

Food grade small bag filling packing machine milk cocoa powder package machine
BSPM powder filling machine is mainly used for packing dry powder and granules. It can complete bag making, weighing, filling, nitrogen filling, date coding and bag cutting. It is suitable for packing milk tea, monosodium glutamate, solid beverage, sugar, glucose, coffee, feed, solid medicine, powder additive and dyestuff etc.
This machine uses PLC servo system, pneumatic control system and super touch screen to form the driving control center, so as to maximize the control accuracy, reliability and intelligent level of the whole machine.
Main features:
1. Electric scale connect with touch screen for weight feedback, the system can adjust at the next filling when detect there have deviation on the first filling.
2. Changing the auger attachment, it fits for lots of material ranging from fine-powder to granule.
3. Hopper with Level sensor to control the feeding machine work automatically.
4. Foot Pedal control filling or by the delay time set by the touch screen ,all simple operation
5. With worktable—left parts for containers place, middle for dust drop, right for the scale.
6. Hopper easy load and unload without tools , inner wall polished,easy cleaning.
Our company:
Brightsail Machinery specializes in the research and development, production, sales and service of grinders, mixers, sieving machines, overall powder solutions, welding services, welding machines, metal processing, and chemical powders.
In addition, we have obtained CE and ISO certificates. In 2018, our company won the Alibaba Group's Top 100 Sales Award in East China. Products are exported to the United States, Canada, Germany, Australia, Europe, Africa, South Asia, Central Asia and other countries and regions. We also welcome OEM and ODM models. Our company's name "Brightseal" is also our hope for all customers and partners worldwide. We hope to grow together and set sail.
Technical data:
| Measure method | Auger dosing | Wrighing feedback tracking |
| Bag-making size |
(W)80-200 mm (L)100-300 mm |
(W)100-250 mm (L) 100-350 mm |
| Filling weight | 10-5000 g(by changing mould) | |
| Packaging precision | ≤1% | |
| Packaging speed | 25-60 bag/min | |
| Power supply | Three phase 380/220 V 50-60HZ | |
| Power | 6 kw | |
| Pressure | 6-8 kg/cm2 | |
| Use tolerance | 0.2 m3/min | |
| Weight | 700 kg | 950 kg |
| Dimension | 1300*1500*2600 | |
