Product Details:
|
| Product Name: | Double Shaft Paddle Powder Mixer Blender Mixing Machine | Material: | SUS304,SUS 316,carbon Steel |
|---|---|---|---|
| Application: | Food,chemical,pharmaceutical,etc | Motor Power: | 3-75kw |
| Volume: | 100-10000L | Warranty: | One Year |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| High Light: | spice powder making machine,chili powder making machine |
||

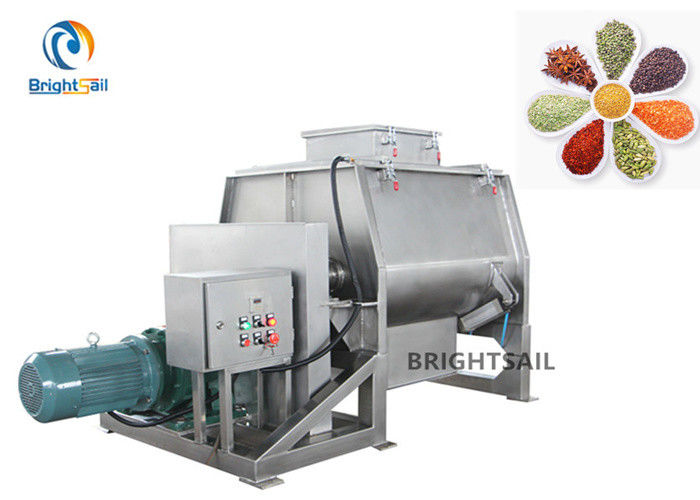

Horizontal spice powder mixer machine double shaft paddle masala mixing machine
Our BSLdouble shaft paddle mixer widely used in chemical industry, building materials, medicine, agriculture and other industries in the mixing of powder material. It is mainly used in thermal insulation mortar, anti-crack mortar, adhesive mortar, mortar, floor mortar, concrete admixture, chemical powder, requiring high feed and other mixing uniformity.
In the occasion the fiber is large, the mixer can add shear blades, then the fiber material can be broken up, scattered, obtained satisfactory mixing effect via the shear blades in a relatively time. For spraying a mixture of occasions, the zero gravity mixing machine can install 1-3 nozzles for spray mixing.
Working method:

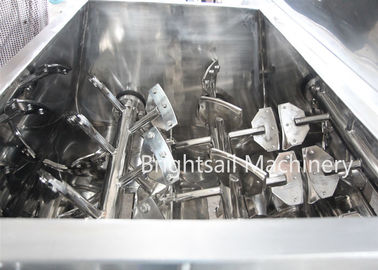

Driven by a direct-connected reducer, the chain drives the dual-shaft rotor to move in reverse at a certain speed. During the movement, the blades on the shaft advance the material on the one hand, and the material is thrown obliquely forward in the radial direction. space. The materials on both sides move back and forth in their opposite directions, dissolve into each other and mix with each other, forming a fluidized weightless zone and a swirling vortex in the center, and continuously moving in the axial and radial directions to form a complete azimuth combined cycle to quickly obtain uniform mixing effect.
1. The whole mixing process is mild, make sure no material breaks.
2. Even mixing and large adjustable loading range.
3. Large discharging door make the discharging speed quick, and no remains.
4. Structure compaction, pleasing appearance, stable property, low noise, no environment pollution.
5. Air seal main shaft, reduces the friction between main shaft and material, and increase operating life.
Our service:
1. We take customers as our gods. We devote to all-round service of all the products from shipment to maintenance.if you need our engineer installation in your factory,we will arrange visa in time.
2. We will supply long distance operation video to you all the time.
3. After placing order, we provide the warranty of one year.
4. If you have any problems, we will help to solve on line in first time.
5. Our products have CE and ISO certificate, they are of good quality with lower price.
Drawing:
Technical data:
|
Model
|
Work
volume
|
Speed
(rpm)
|
Motor
power(KW)
|
Overall size (L*W*H)
(mm)
|
Weight
(kg)
|
Output size
(mm)
|
|
BSL-100
|
60L
|
2*57
|
3
|
1320(L)*700(W)*700(H)
|
320
|
2*200*50
|
|
BSL-300
|
180L
|
2*57
|
5.5
|
1242(L)*1278(W)*1025(H)
|
750
|
2*250*60
|
|
BSL-500
|
300L
|
2*51
|
7.5
|
1412(L)*1410(W)*1230(H)
|
1000
|
2*300*80
|
|
BSL-1000
|
600L
|
2*43
|
15
|
1875(L)*1610(W)*1350(H)
|
1550
|
2*350*120
|
|
BSL-2000
|
1200L
|
2*43
|
18.5
|
2312(L)*2160(W)*1775(H)
|
2500
|
2*350*120
|
|
BSL-3000
|
1800L
|
2*36
|
22
|
2408(L)*2400(W)*1955(H)
|
2900
|
2*350*120
|
|
BSL-4000
|
2400L
|
2*36
|
30
|
2822(L)*2546(W)*2015(H)
|
3600
|
2*360*140
|
|
BSL-6000
|
3600L
|
2*29
|
45
|
3075(L)*2980(W)*2235(H)
|
5600
|
2*700*140
|
|
BSL-8000
|
4800L
|
2*29
|
55
|
3278(L)*3426(W)*2425(H)
|
7100
|
2*700*140
|
|
BSL-10000
|
6000L
|
2*29
|
75
|
3538(L)*3645(W)*2615(H)
|
8000
|
2*800*140
|
