Product Details:
|
| Product Name: | Double Shaft Paddle Powder Mixer Blender Mixing Machine | Material: | SUS304,SUS 316,carbon Steel |
|---|---|---|---|
| Application: | Food,chemical,pharmaceutical,etc | Motor Power: | 3-75kw |
| Volume: | 100-10000L | Warranty: | One Year |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| High Light: | vegetable powder making machine,sugar powder making machine |
||

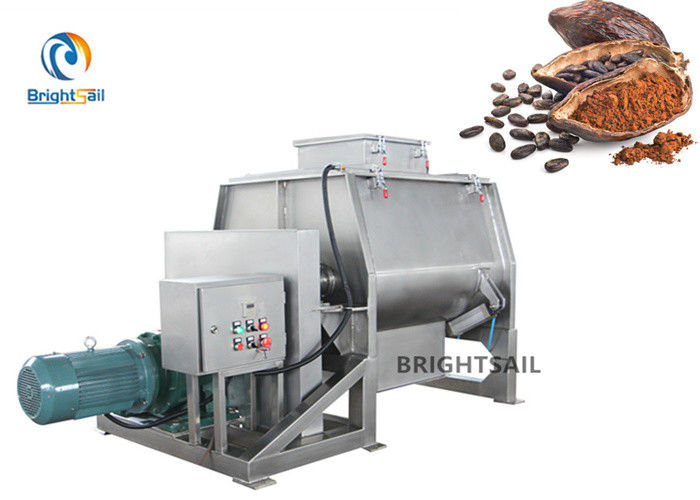

Animal food powder blender machine zero gravity fertilizer flour mixing machine
Our BSL double shaft paddle mixer is mixing many powder materials well-proportioned,which widely applied in food, chemical, pharmaceutical and other industries. It is the perfect machine in mixing and producing powder materials.
For spraying a mixture of occasions, the zero gravity mixing machine can install 1-3 nozzles for spray mixing. The humidity must be controlled within 17%, spray mixed materials are not suitable for higher viscosity raw material. Application in medicine and food industries, selects the stainless steel no gravity mixing machine, inside and outside polishing, which meets the GMP requirements.
Working method:
Driven by the directly-connected decelerator, the chains drive the dual-axis rotor to move reversely at a certain speed and, during the movement, the paddle on the axis makes the material go ahead on the one hand and,on the other hand, throws it along with the radial direction to the oblique-front space. The materials on the two sides move in the reversed areas of their own to go to and fro to get direction and are mutually dissolved into the penetrated and mixed so that a fluidized weightless area and rotating vortex is formed in the central part and continually moves along with the axial and radial directions so as to form a full-respect combined cycle to quickly get the uniform mixing effect.
1. The whole stirring process is gentle without material breakage.
2. Stir evenly and have a wide range of adjustable loading.

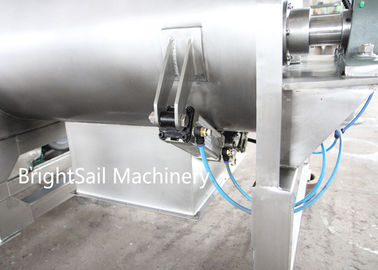

3. Large discharge door, fast discharge speed, no residue.
4. Compact structure, beautiful appearance, stable performance, low noise and no environmental pollution.
5.The air-seal main shaft reduces the friction between the main shaft and the material and improves the service life.
Our company:
Brightsail Machinery, 2002 sees the company growth and its business scope enlarge from grinding machine to a complete production line, such as drying machine, cutting machine, and packaging machine. Company is a integration of high-tec research, production, sales and service with total investment of 5 hundred million located in Wuxi city. We mainly supply a whole production chain of closely related machines, including, grinding machine, mixing machine, packing machine.Should you have any interest,please contact us,we are willing to help you find a most suitable machine for you.
Technical data:
|
Model
|
Work
volume
|
Speed
(rpm)
|
Motor
power(KW)
|
Overall size (L*W*H)
(mm)
|
Weight
(kg)
|
Output size
(mm)
|
|
BSL-100
|
60L
|
2*57
|
3
|
1320(L)*700(W)*700(H)
|
320
|
2*200*50
|
|
BSL-300
|
180L
|
2*57
|
5.5
|
1242(L)*1278(W)*1025(H)
|
750
|
2*250*60
|
|
BSL-500
|
300L
|
2*51
|
7.5
|
1412(L)*1410(W)*1230(H)
|
1000
|
2*300*80
|
|
BSL-1000
|
600L
|
2*43
|
15
|
1875(L)*1610(W)*1350(H)
|
1550
|
2*350*120
|
|
BSL-2000
|
1200L
|
2*43
|
18.5
|
2312(L)*2160(W)*1775(H)
|
2500
|
2*350*120
|
|
BSL-3000
|
1800L
|
2*36
|
22
|
2408(L)*2400(W)*1955(H)
|
2900
|
2*350*120
|
|
BSL-4000
|
2400L
|
2*36
|
30
|
2822(L)*2546(W)*2015(H)
|
3600
|
2*360*140
|
|
BSL-6000
|
3600L
|
2*29
|
45
|
3075(L)*2980(W)*2235(H)
|
5600
|
2*700*140
|
|
BSL-8000
|
4800L
|
2*29
|
55
|
3278(L)*3426(W)*2425(H)
|
7100
|
2*700*140
|
|
BSL-10000
|
6000L
|
2*29
|
75
|
3538(L)*3645(W)*2615(H)
|
8000
|
2*800*140
|
