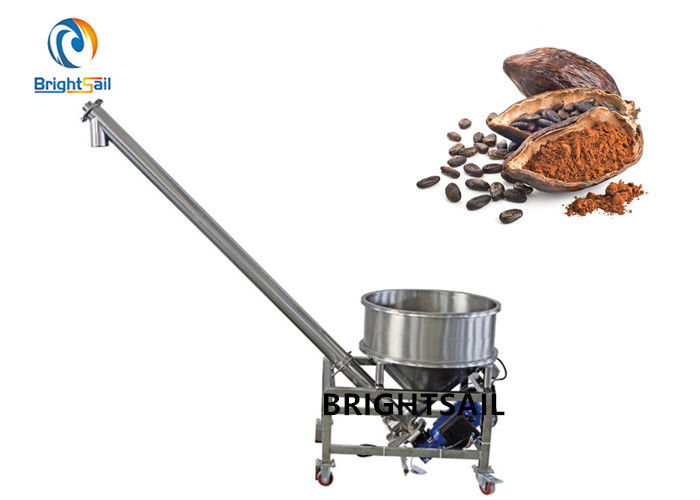

Industry Food Powder Conveyor Feeder Systems Cocoa Coffee Flour Screw Feeder

Industry food powder conveyer feeder systems cocoa coffee flour screw feeder

Our BS screw feeder machine is widely used to convey material during production/packing process etc. in pharmaceutical, chemical and food industry.

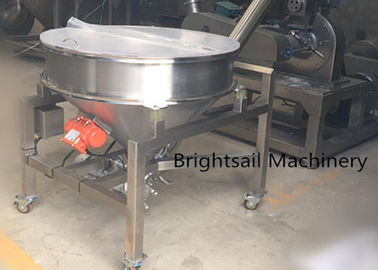

It consists of feeding motor, vibration motor, hopper, and screw and feeding tubes. Because of the use of vibration screw conveyor, in addition to the regular 45-degree angle, the feeding tube can be customized to other angles. Conveying capacity has several options to choose from: 2M3/H, 3M3/H, 5M3/H, and 8M3/H. In addition to the conventional 1.85 meters, the lifting height can also be customized between 1 and 5 meters.

Main features:

1. Installation, removal and maintenance is very convenient.
2. Bearing is sealed good.
3. Won't blocking materials when transporting.
4. Simple structure, small size, it occupied area and the space is small.
5. The input and output can be adjusted according to your requirement.
6. The material is SUS304, if you need other material(eg: SUS 316 food grade), please tell us.
7. The Length, width and the height can be adjusted according to your requirement.

Packing details:

Export standard package. Fumigation wooden box or container.
For small machine, we pack it in wooden box.
For super big machine, we will separate the machine into several parts and pack it with film. Then, fix them in container with steel to avoid any shaking or moving during the shipping.

Our company:

Since its establishment, Brightsail Machinery has been committed to the grinders, mixers, dryers, packaging machines, vacuum and screw feeders, other equipment and related products processing production and R & D design. Our products customers throughout the domestic and oversea markets. Our equipment is mainly applied in food, pharmaceutical, chemical and other industries.
Brightsail Machinery is adhering to the quality and service business philosophy, dedicated to the majority of customers to provide the highest quality products and services, strive to provide customers without worry products, to meet the needs of the majority of customers.

Technical data:
