Product Details:
|
| Product Name: | Small 3D Powder Mixer Blender Mixing Blending Machine | Material: | SS304/316 |
|---|---|---|---|
| Volume: | 5-1000L | Warranty: | One Year |
| Power: | 0.37-7.5kw | Weight: | 70-2500 Kg |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| High Light: | spice powder making machine,pepper powder making machine |
||

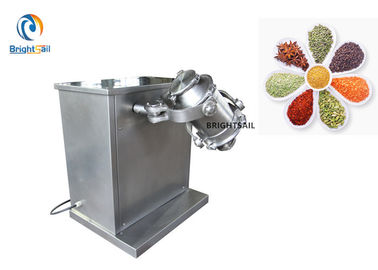

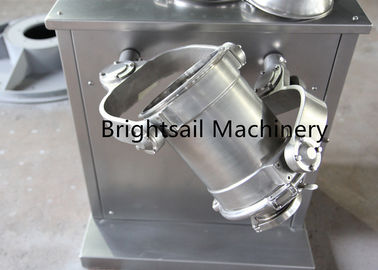

Small spice powder mixer machine 3D type masala curry flour blending machine
Our BSTD series 3D powder mixer is applicable for mixing of powder and granulate material in pharmaceutical, chemical, foodstuff, ligh industry, electronic, mining and metallurgy, national defense industry and scientific research institutes.
It is a kind of full closed high effcient energy saving mixer without germ and dust. When he material is being mixed, no centrifugal force effect and situation of gravity segregation and laminar accumulation are occurred. In addition, it has larger loading capacity,short mixing time and high efficiency.
Working method:
The cylinder containing the material is driven by the transmission shaft to perform a circular composite movement of translation, rotation and rolling, so that the material moves along the cylinder in an annual, radial, and axial direction to realize the mutual flow, dispersion and accumulation of materials, and mixing. To achieve the purpose of thorough mixing.
Main features:
1) Special construction, applied the national patent
2) Gear drive, adjusting eccentric structure, keep the machine run smoothly
3) Durable and stable product quality
4) Short mixing time,smooth running
Our company:
Our company-Brightsaill Machinery Co., Ltd is focus on the research of powder equipment, such as milk powder blender, chemical powder mixer machine, detergent powder mixing machine... etc. Our products can be applied in food, medicine, chemical and other industries and had won a good reputation.
After 15 year's development and accumulation, our company has been one of the most influential equipment manufacturers in the industry. And we wish to grow up and develop together with all new and old customers.
Technical data:
| Model | BSTD-5 | BSTD-10 | BSTD-25 | BSTD-50 | BSTD-100 | BSTD-200 | BSTD-400 | BSTD-600 | BSTD-800 | BSTD-1000 |
| Volume of work barrel(L) | 5 | 10 | 25 | 50 | 100 | 200 | 400 | 600 | 800 | 1000 |
| Max loading volume(L) | 3 | 7 | 17 | 35 | 70 | 140 | 280 | 420 | 560 | 700 |
| Spindle speed(rpm) | 0-19 | 0-20 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-11 | 0-10 | 0-10 |
| Motor power(kw) | 0.37 | 0.55 | 0.75 | 1.5 | 1.5 | 2.2 | 4 | 5.5 | 7.5 | 7.5 |
| Weight(kg) | 70 | 120 | 150 | 300 | 500 | 800 | 1200 | 1500 | 2000 | 2500 |
