Product Details:
|
| Product Name: | Small 3D Powder Mixer Blender Mixing Blending Machine | Material: | SS304/316 |
|---|---|---|---|
| Volume: | 5-1000L | Warranty: | One Year |
| Power: | 0.37-7.5kw | Weight: | 70-2500 Kg |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| High Light: | sugar powder making machine,flour hammer mill |
||

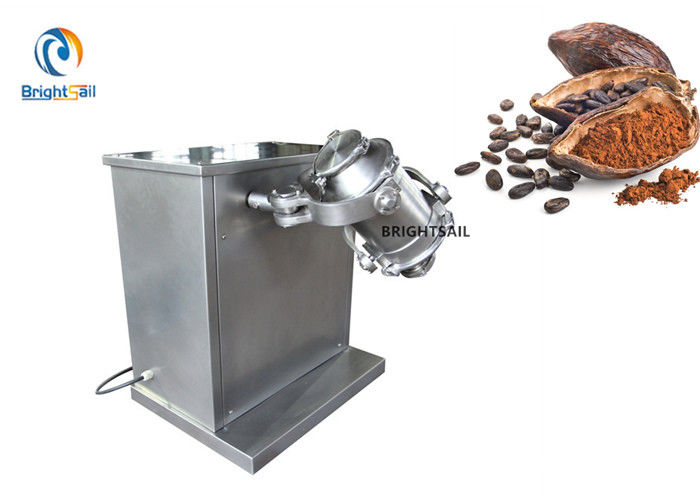

SS304 food powder mixing machine laboratory cocoa coffee flour blender machine
Our BSTD series 3D powder mixer is suitable for mixing dry, powdery materials such as those used in the pharmaceutical, chemical, food and metal powder industries. They mix ingredients of different crystal size and density into a homogeneous product quickly and in a closed environment, without contact with the working environment or other materials.
It adopts a unique 3D pendulum and rotary trajectory, which mixes the ingredients efficiently by constantly pushing them forward.
Working method:
The cylinder with materials is driven by the transmission shaft to move, rotate and roll in a circular composite motion, so that the materials move along the cylinder annually, radially and axially to realize the mutual flow, dispersion, accumulation and mixing of materials. For the purpose of thorough mixing.
Main features:
1. The equipment needs not to set base, installation and servicing are convenient, and performance life is long.
2. Mixing effect is good, mixing time is short, high mixing uniformity.
3. Low height, small gyration space.

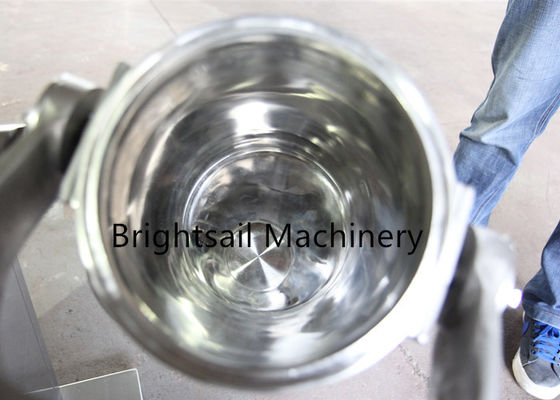

4. Replaceable mixing drum, simple installation, no dead spot or residual in discharging, easy cleaning, conforming to GMP requirements.
Our company:
Brightsail Machinery has found nearly 15 years, who designs and manufactures overall powder processing solutions for the Chemical, Pharmaceutical, Food, Mineral, Cosmetic and Plastic industries, like powder grinding machines, mixing machines, sifting machines...etc.
Brightsail is constantly committed to develop new advanced techniques and methods on the machines, since our goal is to be your trusted manufacture of creative and value added process solutions.
Technical data:
| Model | BSTD-5 | BSTD-10 | BSTD-25 | BSTD-50 | BSTD-100 | BSTD-200 | BSTD-400 | BSTD-600 | BSTD-800 | BSTD-1000 |
| Volume of work barrel(L) | 5 | 10 | 25 | 50 | 100 | 200 | 400 | 600 | 800 | 1000 |
| Max loading volume(L) | 3 | 7 | 17 | 35 | 70 | 140 | 280 | 420 | 560 | 700 |
| Spindle speed(rpm) | 0-19 | 0-20 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-11 | 0-10 | 0-10 |
| Motor power(kw) | 0.37 | 0.55 | 0.75 | 1.5 | 1.5 | 2.2 | 4 | 5.5 | 7.5 | 7.5 |
| Weight(kg) | 70 | 120 | 150 | 300 | 500 | 800 | 1200 | 1500 | 2000 | 2500 |
