Product Details:
|
| Packaging Type: | Stand-up Pouch, Bags, Pouch | Bag Type: | Pillow Bag,Stand Pouch |
|---|---|---|---|
| Application: | Food, Commodity, Medical, Chemical..etc | Warranty: | One Year |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| High Light: | spice powder making machine,pepper powder making machine |
||
Industry paper bag spice powder filling machine sachet food packaging machinery

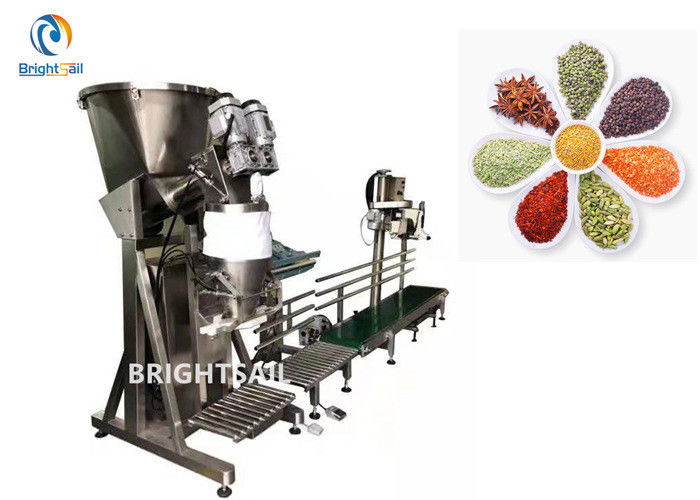

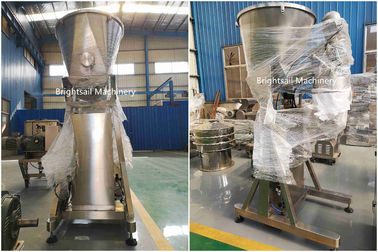

This style of our BSPM-2 semi automatic powder filling machine machine can complete the measuring, filling etc. Because the original design, it more suitable for packing the easy flow or poor liquidity of powder and granular materials.
Usually we equip the machine sewing sealing machine which is suitable for sewing flour bag, gunny bag, plastic woven bag in the field of food industry, chemical industry, port etc. It is characteristic of advanced technology, stable packing speed, long-time stability, and long working life.
Main features:
1. This is an intelligent machine with easy operation, equip touch screen operation panel, PLC unit fixed on the machine;
2. Applicable to all kinds of powder and mixed powder-like material weighing filling, such as: fertilizers, additives, flour, milk powder, coffee powder, washing powder, solid drink, sugar, monosodium glutamate, condiments (such as spicy fresh), natural flavoring , enzymes, feed powder (powder, superfine powder), mixing quantitative powder-like material filling.
3. This machine is designed with automatic clapped bag function: there will come out an electro-magnetic signal and the pneumatic cylinder will clap the bag which is still clampped and overhang at the end time of powder filling. This is to eliminate the loosen room in the bag for powder's loosen density.
4. Belt conveyor and the Motor&reducer gear:the gear reducer is worm type, the running is lower noise, running evenly.
Working method:
First, you need to manually apply the bag to the filling port and start the filling process with a button. Your material will first enter the hopper and then be filled into the bag through the feeding unit. The filling flow is controlled by the frequency conversion speed. When the bag is full, the bag clamping device opens automatically and is conveyed to the sewing system for sealing.
Our company:
Our company-Brightsaill Machinery Co., Ltd is focus on the research of powder equipment, such as grinding machines, mixing machines, packing machines, drying machines, etc. Our products can be applied in food, medicine, chemical and other industries and had won a good reputation.
After 15 year's development and accumulation, our company has been one of the most influential equipment manufacturers in the industry. And we wish to grow up and develop together with all new and old customers.
Technical data:
| Model | BSPM-2 |
| Feed type | double screw |
| Measure method |
by auger weighing |
| Weigh range |
4~50 KG |
| Packing accuracy |
≤1‰ |
| Pack speed |
2~4 bags/minute |
| Hopper size |
150L |
| Motor | 2 kw |
| Machine size |
1000*1000*2300 |
| Remark |
when pack 4~10 kg bags, accuracy is ±10g when pack 10~25 kg bags, accuracy is ≤1‰ |
FAQ:
If you want a semi automatic powder filling machine,could you please provide these details as below?
1) What material you want to pack?
2) What’s the bulk density of your material? Such as: 0.3g/cm³,0.5g/cm³,1.7g/cm³...etc.
3) What the size of your package bag?Do you have any pictures?
4) How many bags you want to pack for per minute?
