Product Details:
|
| Material: | SS304/316 | Volume: | 50-5000L |
|---|---|---|---|
| Warranty: | One Year | Mixing Time: | 4-10 Min |
| Power: | 1.1-11kw | Voltage: | Customized |
| High Light: | vegetable powder making machine,sugar powder making machine |
||

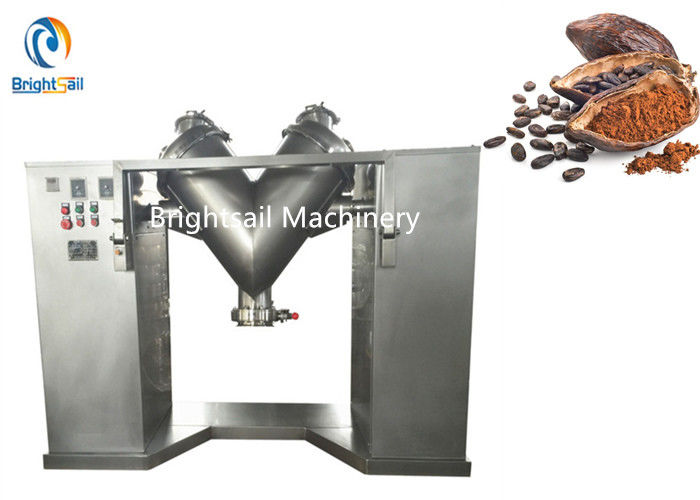

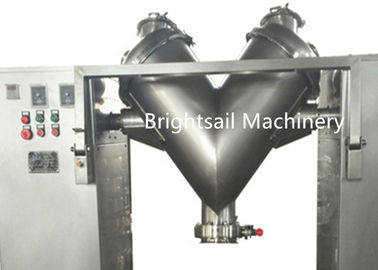

V shape food powder mixer machine dry cocoa flour powdered milk blending machine
BSV powder mixing machine is designed for mixing two or more dry powder and granule raw materials from pharmaceutical industry, chemical industry, foodstuff industry and so on. The structure of this machine in unique. The mixing efficiency is high and no dead corner. It is made of stainless steel. The inner and outer wall is processed through polishing. Nice appearance. Mixture uniform. The scope of application is wide. The forced stirrer can also be equipped, according to request of client, to meet the requirements of raw materials that contain pretty fine powder, cake and certain moist stuff.
Details:
1. Major sections: barrel, agitators, feeding parts, discharging part and driven unit.
2. Sizes: available from 50Liter to 4000 Liters.
3. Material: Carbon Steel, Stainless Steel 304, Stainless Steel 316L
4. Discharge: butterfly valve
5. Speed: Controls such as variable frequency drives, motor starters and operator stations are available.
6. Temperature: mixer can be equipped with heating or cooling jacket if temperature control is required, spray nozzles for liquid introduction,
7. Application: Powder and liquid mixing, like Food; Pharmaceutics; Agriculture; Dyestuff; Chemicals.
Main features:
1. Mirror polished of inner and outer shell to meet GMP standard.
2. No blind angle in the V-shells, no accumulation of materials,high speed mixing effect and short mixing time.
3. Mixing uniformity can reach 99%
4. Plate valve is equipped for discharging
5. Fully integrated motors and controls
6. Can work with vacuum feeding system to create dust-free working condition.
Our company:
Brightsail Machinery, which is a set design, development, production, sales into an integrated enterprise, specialized in the production of grinding machine, mixing machine, packing machine, drying machine, conveying machine and other powder solution equipments. We have more than 10 year export experience, so we can provide you professional advice and supply you the suitable machine. Welcome all customers to contact with us, and looking forward to cooperating with you.
Technical data:
| Model | BSV-100 | BSV-200 | BSV-300 | BSV-500 | BSV-1000 | BSV-1500 | BSV-2000 | BSV-2500 | BSV-300 | BSV-4000 |
| Total volume(m³) | 0.1 | 0.2 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 |
| Mixing time(min) | 4-8 | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
| Cylinder speed(rpm) | 15 | 15 | 12 | 12 | 12 | 10 | 10 | 8 | 8 | 7 |
| Main motor power(kw) | 1.1 | 1.1 | 1.1 | 2 | 4 | 5.5 | 7.5 | 7.5 | 7.5 | 11 |
| Agitator power(kw) | 0.75 | 0.75 | 0.75 | 1.5 | 2.2 | 2.2 | 3 | 3 | 4 | 5.5 |
| Weight(kg) | 230 | 290 | 400 | 550 | 850 | 1020 | 2040 | 2200 | 2500 | 2800 |
