Product Details:
|
| Heating Source: | Steam+electricity | Warranty: | One Year |
|---|---|---|---|
| Material: | Stainless Steel 304 | Temperature Range: | 20-160(adjustable) |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| High Light: | oven drying machine,air circulation oven |
||

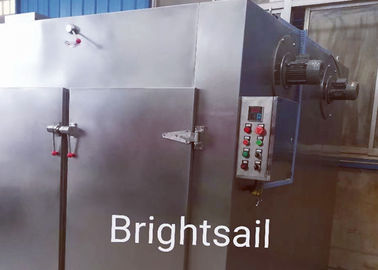

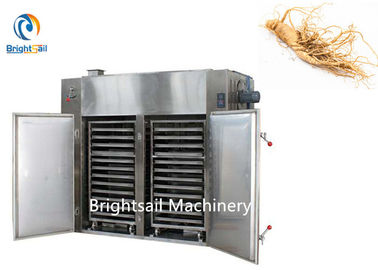

Chinese herb licorice dryer oven machine ginger ginseng root drying equipment
BSO drying machine is widely used in pharmaceutical, chemical, food, light industry and heavy industry raw materials and products for heating and dehumidification.It is a multifunctional drying device, which mainly circulates inside the box through the forced hot air heated by the electric heating tube or the steam heat exchanger to enhance the heat transfer and achieve the effect of drying the material.
It can be according to box size, single door or double door design, shell with environmentally friendly metal paint spray overall beautiful and generous. Internal tank optional steel plate, zinc plate or stainless steel plate.
Working method:
The basic principle is that steam or electricity is used as heat energy, and heat is generated by a steam radiator or electric heating element. The fan performs convective heat exchange to transfer heat to the material, and continuously adds fresh air to the oven, and exhausts humid air to blow from the oven. . When drying, maintain proper relative temperature and humidity. The most important feature is that most of the hot air circulates in the drying room, thereby enhancing heat and mass transfer and saving energy.
Main features:
1. Great part of hot wind is circulated in the oven with high thermal efficiency,less energy consumption.
2. The oven is equipped by the adjustable air-distributing plates to utilize the forced ventilating to dry the target materials evenly.
3. The whole machine runs in stable condition,low noise,self-control temperature,easy installing and maintaining,and wide application.
4. Over temperature protection, super load automatic power system.
Our company:
Brightsail Machinery is focus on the research of powder equipment, such as grinding machines, mixing machines, drying machines, packing machines, conveying machines... etc. Our products can be applied in food, medicine, chemical and other industries and had won a good reputation from our customer.
Since we have sold many machines to more than 50 countries,we have enough experience and technology to help you to find a most suitable machine.Should you have any interest in our products, please feel free to contact us!
Technical data:
| Model | BSO-O | BSO-I | BSO-II | BSO-III | BSO-IV |
| Capacity(kg/batch) | 60 | 120 | 240 | 360 | 480 |
| Blower power(kw) | 0.45 | 0.45 | 0.9 | 1.35 | 1.8 |
| Steam expend(kg/h) | 15 | 20 | 40 | 60 | 80 |
| Electric-heating power(kw) | 9 | 15 | 30 | 45 | 60 |
| Down temp(℃) | ±2 | ±2 | ±2 | ±2 | ±2 |
| Tray(piece) | 24 | 48 | 96 | 144 | 192 |
| Overall size(L*W*H)(mm) | 1400*1200*2000 | 1200*2300*2000 | 2300*2200*2000 | 3200*2200*2000 | 4280*2200*2000 |
| Weight(kg) | 820 | 1500 | 1800 | 2200 | 2800 |
