Product Details:
|
| Product Name: | Double Shaft Paddle Powder Mixer Blender Mixing Machine | Material: | SUS304,SUS 316,carbon Steel |
|---|---|---|---|
| Application: | Food,chemical,pharmaceutical,etc | Motor Power: | 3-75kw |
| Volume: | 100-10000L | Warranty: | One Year |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| High Light: | vegetable powder making machine,sugar powder making machine |
||
Poultry feed corn flour food powder blender machine protein mixing equipment

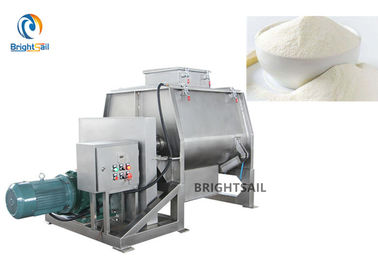

Our BSLdouble shaft paddle mixer is an ideal mixing machine with low-speed, high-efficient and energy-saving characteristics. It is widely applied in food, chemical, medical, industry, etc.
It is machined by a directly connected reducer. The chains drive the two-axis rotor to move in reverse at a certain speed. In the course of movement, the paddle on the axis make the material run forward on one hand, and on the other hand, throw it along with the radial direction to the oblique-front space.
Working method:
It is consists of two rotors with reverse rotation directions, welding many paddles in the rotor with different special angles. Paddles make the materials counterclockwise rotating along slot inner wall, and make materials stirring left and right. The overlapped area of two rotors makes a zero-gravity area, no matter what size, shape and bulk density materials are, they are even mixed in the mixer.
1. Rotate reversely and throw material to different angles, mixing time is short.
2. Compact design and rotated shafts be filled with hopper, mixing uniformity up to 99%.
3. Only 2-5mm gap between shafts and wall,open-type dischrging hole.
4. Patent design and ensure the rotating axle & dischrging hole with zero leakage.
5. Full weld and polishing process for mixing hopper, without any fastening piece like screw, nut.
6.The whole machine is made by 100% stainless steel to make its profile elegant except bearing seat.
Our company:
We are professional manufacturer with decade experience. Quality is the our first concern. All the efforts we make is to achieve the full satisfactions of our customers.
Quality is thoroughly carried out in the entire procedures from material choosing, machine production, equipment testing and packaging, on time delivery and excellent after sales service. Our machines are mainly featured by the durability and hygienic processing.
Our machines had delivered to worldwide, we provide prompt service to our customers, which includes:
Guidance and suggestions to machines' choice
Factory/shop layout guidance
Complete installation and commissioning
1 year warranty, service life technical support.
All types of spares required in our product range
Technical data:
|
Model
|
Work
volume
|
Speed
(rpm)
|
Motor
power(KW)
|
Overall size (L*W*H)
(mm)
|
Weight
(kg)
|
Output size
(mm)
|
|
BSL-100
|
60L
|
2*57
|
3
|
1320(L)*700(W)*700(H)
|
320
|
2*200*50
|
|
BSL-300
|
180L
|
2*57
|
5.5
|
1242(L)*1278(W)*1025(H)
|
750
|
2*250*60
|
|
BSL-500
|
300L
|
2*51
|
7.5
|
1412(L)*1410(W)*1230(H)
|
1000
|
2*300*80
|
|
BSL-1000
|
600L
|
2*43
|
15
|
1875(L)*1610(W)*1350(H)
|
1550
|
2*350*120
|
|
BSL-2000
|
1200L
|
2*43
|
18.5
|
2312(L)*2160(W)*1775(H)
|
2500
|
2*350*120
|
|
BSL-3000
|
1800L
|
2*36
|
22
|
2408(L)*2400(W)*1955(H)
|
2900
|
2*350*120
|
|
BSL-4000
|
2400L
|
2*36
|
30
|
2822(L)*2546(W)*2015(H)
|
3600
|
2*360*140
|
|
BSL-6000
|
3600L
|
2*29
|
45
|
3075(L)*2980(W)*2235(H)
|
5600
|
2*700*140
|
|
BSL-8000
|
4800L
|
2*29
|
55
|
3278(L)*3426(W)*2425(H)
|
7100
|
2*700*140
|
|
BSL-10000
|
6000L
|
2*29
|
75
|
3538(L)*3645(W)*2615(H)
|
8000
|
2*800*140
|
