Product Details:
|
| Product Name: | Semi Automatic Powder Filling Packing Package Machine | Packaging Type: | Stand-up Pouch, Bags, Pouch |
|---|---|---|---|
| Bag Type: | Pillow Bag,Stand Pouch | Application: | Food, Commodity, Medical, Chemical..etc |
| Filling Weight: | 1-100 G | Warranty: | One Year |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| High Light: | spice powder making machine,chili powder making machine |
||

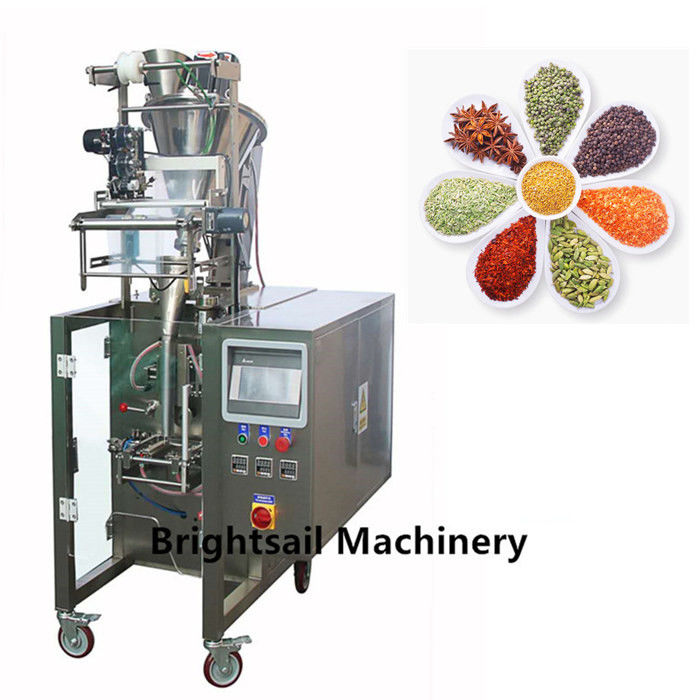

Automatic mini sachet spice powder filling machine curry powder package machine
BSPM-F automatic powder filling machine can be used for bagging, weighing, filling, nitrogen filling, date coding, cutting bags. It is suitable for packing powdered and granular materials such as milk tea, monosodium glutamate, solid beverages, sugar, glucose, coffee, feed, solid medicine, powdery additives, dyes and so on.

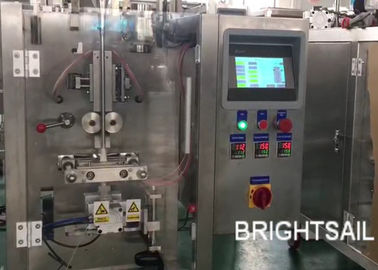

The PLC servo system, pneumatic control system and super touch screen are used to form the drive control center, which maximizes the control accuracy, reliability and intelligence of the whole machine.
Main features:
1. All parts and assemblies coming in contact with powder are made of S.S.304 and easily removable for maintenance changeover.
2. NO CAN, NO FILL" System eliminates wastage of costly powder,only when can in place then filling start.
3. Can Feeding was contorlled by servo system featured with stable performance and accurate positioning.
4. Powder Filling system was controlled by servo system with adjustable filling speed set and high accuracy outcome.
Our company:
Brightsail Machinery is an enterprise specializing in pharmaceutical processing, chemical processing, plastic processing, food processing machinery, packaging machinery and related equipment.
We have nearly a large factory facility and modern equipment. After 18 years of hard work, our company has become one of the major food processing machinery suppliers in China and has won praises from many customers.
We will provide you with the most suitable advice based on your experience and choose the best machine for you!
Technical data:
| Model | BSPM-F |
|
Biggest Film width |
300 mm |
| Bag size | W:30-100mm L:30-165mm |
|
Packing speed |
35~65 packs/minute |
|
Measure method |
auger weighing |
|
Sealing type |
Three-side seal |
|
Measure weight |
1g ~100 g (when pack 2 g bag, accuracy is ±0.05g) |
|
Power |
1.5 kw |
|
Power supply |
1P/220V/50HZ (can be customized) |
|
Machine size |
1100*850*1800mm |
|
Weight |
220 kg |
