Product Details:
|
| Product Name: | Grain Powder Mill Grinder Milling Making Machine Air Classifier Mill | Material: | SS 304/316 |
|---|---|---|---|
| Capacity: | 20-1800 Kg/h | Input Size: | <15 Mm |
| Fineness: | 60-2500 Mesh | Crusher Motor: | 11-75 Kw |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| High Light: | pepper powder making machine,chili powder making machine |
||

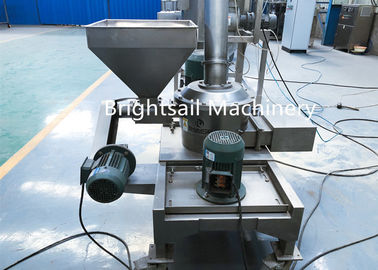

Ultra fine spice powder grinding machine onion ginger garlic air classifier mill
BSP ultra-fine pulverizer is applied for pharmaceutical, chemical, foodstuff, magnetic material and powder industries, representing a new generation pulverizer which combine crushing with dust absorption and continuously discharging.
This machine doesn't need a screen/sieve in the mill chamber, if you want to change the powder particle size, just change the speed by inverter.
Working method:

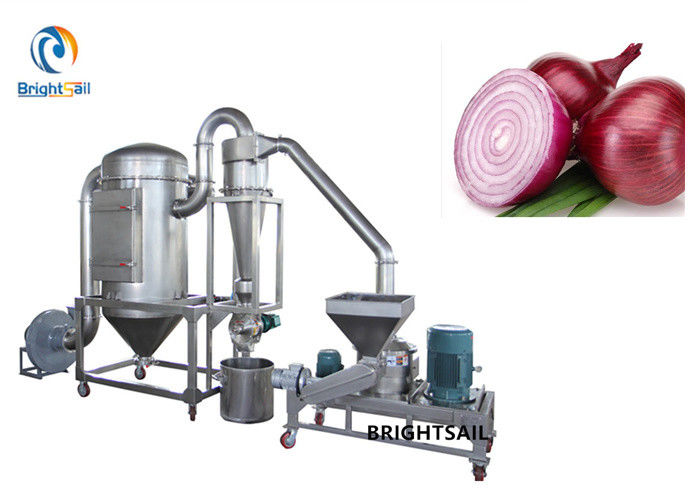

Raw material is transported into the milling chamber via hopper by screw feeder, been cut and sheared by the high speed rotating cutters and gear rings inside the chamber to complete the pulverizing process, and the matched sizes powders will be classified out from the chamber by the help of the air classifying device, the RPM of classifying device is adjustable for ensure the classified out powder's size be different as required. Then the powders go into the cyclone unit and discharging. Some mini-powder dust will be suck into the Dust-Collector for recycling. The whole process are complete sealed, makes sure no dust flying situation and clean production.
Main features:
1. The raw materials’ milling process and powder’s classifying are equipped in one same chamber, but working individually. Makes sure its compact structure and there is no over milling for the materials.
2. Raw material products’ milling/classifying/final output powder are processed in a complete system with de-dusting, makes sure no powder dust pollution, ideal equipment for environmental protection system.
3. Adjustable output powder size, easy maintenance operation, compact construction, widely applications.
4. By the different industry requirements, the equipment can be made in Carbon Steel, Stainless Steel(304/316), etc.
4. Equipped with Cooling Jacket for the milling chamber shell, Buffer Liner, Bearing Blocks. Makes sure no over temperature into the machine during milling. So that the raw materials’ characteristics won’t be changed because of high temp.
5. Dust collecting unit equipped with Pulse dedusting system, with filtering cloth bag, which is easy dismantling type, easy taking apart for cleaning. With perfect dedusting result, avoid the filtering bags been block situation happens.
Our service:
1. Before sending the machine, we will test and adjust, so you can use directly when you get it.
2. Operating video & instruction will be sent to clients, to help them better use the machines.
3. Any problems occur while using, professional advice will be given by us.
4. All kinds of frequently used parts are supplied from us all the year round.
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
