Product Details:
|
| Product Name: | Powder Mixer Blender Mixing Blending Machine | Usage: | Mix Powder Or Paste Type Materials |
|---|---|---|---|
| Material: | SS304/316 | Volume: | 50-1000L |
| Warranty: | One Year | Mixing Speed: | 24 Rpm |
| Power: | 1.5-15kw | Voltage: | Customized |
| High Light: | vegetable powder making machine,sugar powder making machine |
||

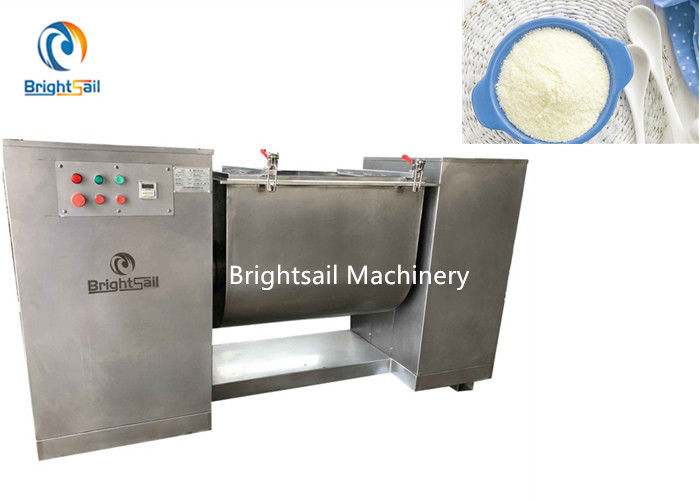

Industry milk food powder mixer machine Through shaped starch blender machine
BST series Through-shaped powder mixer has a good effect for mixing dry powder and pasty materials. It can be widely applied in chemical, food, medicine and other industries. Such as spices powder, detergent powder, coffee powder, milk powder, peanut butter, mayonnaise and son on.
Working method:

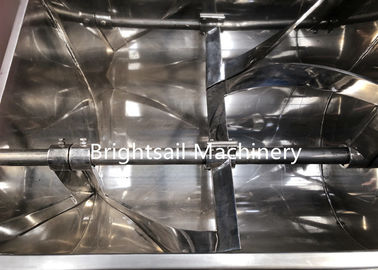

T type agitating paddle rotated, through mechanical driving, which pushes the material turn repeatedly and mix uniformly. Operate with electrical control, it can set mixing time to realize automatic stop and electric discharge upon expiration, thus improving the mix quality of each batch of material and realizing the high homogeneous mixining.
Main features:
1) The powerful driving system (motor, reducer, gears, etc.) is adopted for powder or paste mixing.
2) Two z-arms are overlapped design, which can stir and mix the product more efficiently.
3) The cover is controlled by cylinder pneumatically.
4) The bowl can be tilted to empty dough easily and completely.
5) All contact part in SS304, which meets food standard; mirror polish for both interior and exterior.
After-sale service:
Best before & after service to you:
1) Professional advice and rich experience help to choose machine.
2) Longtime maintainance and considerate technical support.
3) Technicians can be sent to abroad to install.
4) One year guarantee. Whole life service. Within1 year, any problem part can send to us, we can give provide free new part (only damaged by machine itself).
5) Any problem before or after delivery, you could find and talk with us anytime. We will free supply technical support.
6) Video / CD of test running and installation, Maunal book, tool box sent with machine if client request.
Technical data:
| Model | BST-50 | BST-100 | BST-150 | BST-200 | BST-300 | BST-500 | BST-1000 |
| Barrel volume(L) | 50 | 100 | 150 | 200 | 300 | 500 | 1000 |
| Mixing speed(rpm) | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
| Mix motor(kw) | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 15 |
| Dumping motor(kw) | 0.75 | 0.75 | 0.75 | 1.1 | 1.5 | 2.2 | 3 |
| Weight(kg) | 320 | 350 | 410 | 450 | 520 | 800 | 1400 |
