Product Details:
|
| Product Name: | Double Cone Powder Mixer Blender Mixing Blending Machine | Material: | SS304/316 |
|---|---|---|---|
| Volume: | 180-4000L | Warranty: | One Year |
| Mixing Time: | 4-10 Min | Power: | 1.1-11kw |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| High Light: | sugar powder making machine,flour hammer mill |
||

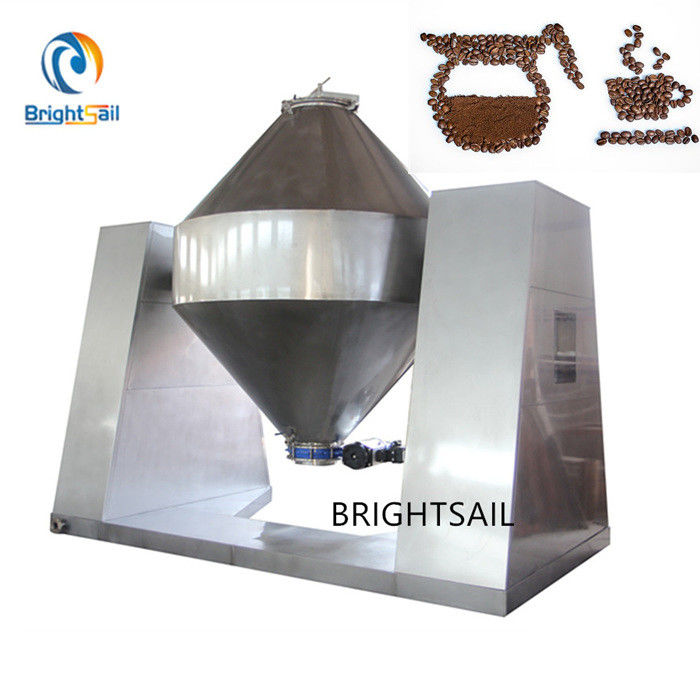

Double cone food powder mixer machine coffee cocoa flour mixing equipment
BSW double cone mixer is used for the drying blending of free flowing solid (powder, granule, etc.) in Pharmaceutical Industry, Foodstuff Industry, Spice Industry, Chemical Industry, etc.
It has excellent performance in terms of mixing fluidity powder and granular powder. Its technical index reaches international standard of similar products. The machine has many advantages of energy saving,convenient operating, low labour, high efficiency.
Working method:
W model double cone powder mixer is most often used for the intimate dry mixing of free flowing solids. The materials are fed into the mixing barrel via quick-open feed port manually or by vacuum feeder. With the rotation of mixing barrel, materials can be completely mixed with high degree of homogeneity. Normal cycle times are typically in the range of 10 minutes, however they can be less depending on the difficulty of mixing.
Main features:
Double cone mixer has remarkable effect in mixing powders and particles with relatively good fluidity. With the each Index reaching the standard of same kind of foreign product, it's barrel is made of stainless steel, which is polished both inside and outside, featuring beautiful appeatance and easy operation.
Our company:
Brightsail Machinery is more than 15 years in providing powder grinders, mixers, dryers, feeders...etc.We also can design the whole production line for you. After year's developmeny, we have become one of the most popular suppliers in our industry and won great reputation from our customers.
All our items are coming with certification and we have special team work for after sales service.Contact me if you are interested, I will send you the catalog and videos.
Technical data:
|
Model
|
BSW-180
|
BSW-300
|
BSW-500
|
BSW-1000
|
BSW-1500
|
BSW-2000
|
BSW-2500
|
BSW-3000
|
BSW-4000
|
|
Full volume(m3)
|
0.18
|
0.3
|
0.5
|
1.0
|
1.5
|
2.0
|
2.5
|
3.0
|
4.0
|
|
Mixing time(min)
|
4-8
|
6-10
|
6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
|
Mixing speed(rpm)
|
12
|
12
|
12
|
12
|
12
|
12
|
12
|
7.8
|
7.8
|
|
Power(kw)
|
1.1
|
1.1
|
2.2
|
4
|
4
|
7.5
|
7.5
|
7.5
|
11
|
|
Gross rotation
height(mm)
|
1850
|
1850
|
1950
|
2460
|
2540
|
3650 |
3650
|
3700
|
3730
|
|
Weight(kg)
|
280
|
310
|
550
|
810
|
980
|
2150
|
2150
|
2500
|
3200
|
