Product Details:
|
| Product Name: | Herbal Powder Grinder Tea Leaf Crusher Hammer Mill Powder Making Pulverizer Machine | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Warranty: | One Year | Input Size: | <15 Mm |
| Capacity: | 10-500 Kg/h | Fineness: | 12-120 Mesh |
| Voltage: | Customized | Package: | Wooden Case |
| High Light: | spice powder making machine,chili powder making machine |
||

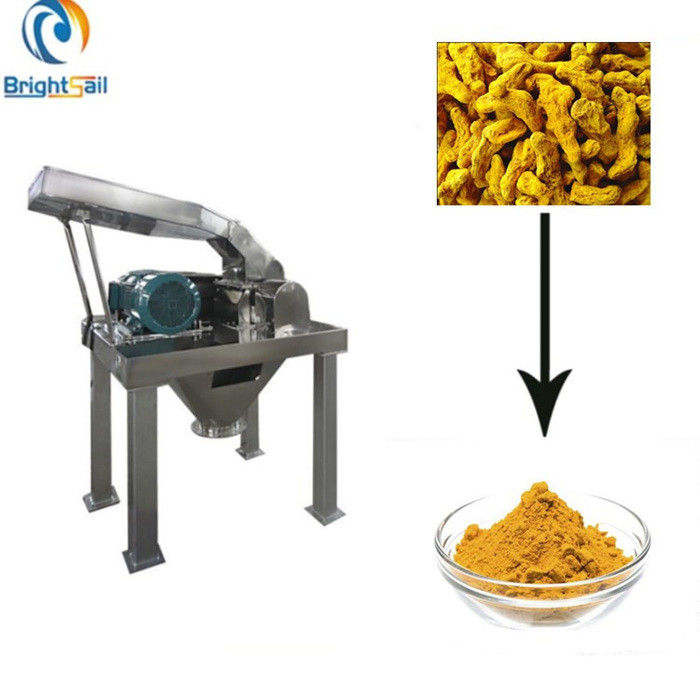

Industry spice powder hammer mill machine turmeric masala grinding machine
Our BSF high efficient hammer mill is widely applied in industries, such as medicine, chemical and food...etc, for grinding of dry and fragile materials. Materials with low softening point and big viscosity are not appropriate for this machine.
Working method:

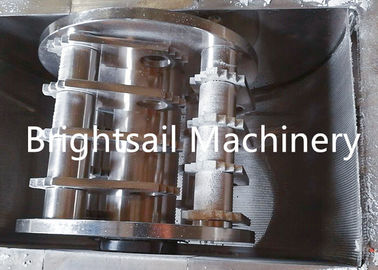

It is a kind of high-speed equipment. In this equipment, the material is cut and crushed by a high-speed blade with sharp edges on one side and an impact blade on the other. If the powder particles are smaller than the sieve mesh size, the sieve will be thrown out of the sieve and then discharged out of the grinder cavity. The blades of different sizes and shapes can be selected according to different materials, and the particle size can be obtained by changing the screen or adjusting the speed.
Main features:
1. Simple machine structure, easy to operate and maintain
2. Small footprint, save space
3. The entire machine is made of stainless steel 304, which is easy to clean and meets GMP standards.
4. The material's fineness can be changed by changing the screen or adjusting the speed of the inverter
Our company:
Founed in 2002, Brightsail Machinery is specialized in making grinders, mixers, dryers, sifting machines, packaing machines, etc, which widely applied in food, chemical, pharmaceutical and other industries.
With our own factory, 20 years’ experience, 79 workers, 6 professional engineers, more than 10 years' experienced technicians, advanced equipment, CE, ISO9001 and material certificates, 1 hour reach Shanghai port; this is how we ensure superior quality, competitive offers and high efficiency for global valued customers.
You can visit our official website which introduces our latest product line.
Should any of these items be of interest to you, please let us know.
Technical data:
| Model | BSF-8 | BSF-16 | BSF-32 |
| Capacity (kg/h) | 10-100 | 50-300 | 100-500 |
| Fineness of finished products (mesh) | 12-120 | 12-120 | 12-120 |
| Power (KW) | 4 | 7.5 | 11 |
| Speed change (RPM) | 2350-4260 | 1000-2400-4400 | 1000-2400-4400 |
| Overall size (L*W*H)(mm) | 1050*600*1600 | 1100*860*1600 | 1280*950*1600 |
| Weight(kg) | 150 | 250 | 320 |
