Product Details:
|
| Product Name: | Spice Grinder,spice Grinding Machine,spice Pulverizer,spice Powder Making Machine | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Material: | SS304/316 | Input Size: | <15mm |
| Cpacity: | 80-1200 Kg/h | Fineness: | 10-120 Mesh |
| Voltage: | Customized | Package: | Container |
| High Light: | flour blending machine,plantain grinder machine |
||
SS304/316 BS Spice Powder Grinding Machine High Productivity
BS high speed hammer mill is very suitable to grind spice,like chili,ginger,garlic,Black pepper,Onions,turmeric.It can satisfy many clients' requirement for high-productivity becouse of it's high-efficient feature.Above all,it's a suitable choise for most our clients.
Working method:
BS pulverizer machine’s work method is : material is crushed by high speed relative motion of movable hammer knives and fixed disc. There is screen mesh in mill chamber,if the particle is smaller than the hole size of screen mesh, it will pass the screen mesh and get out of the mill chamber by centrifuge force. If not, the particle will continue to be crushed in the mill chamber.

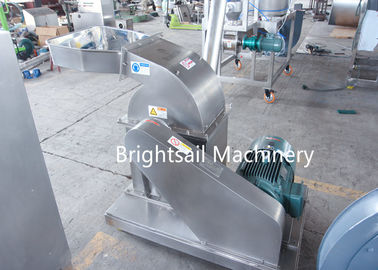

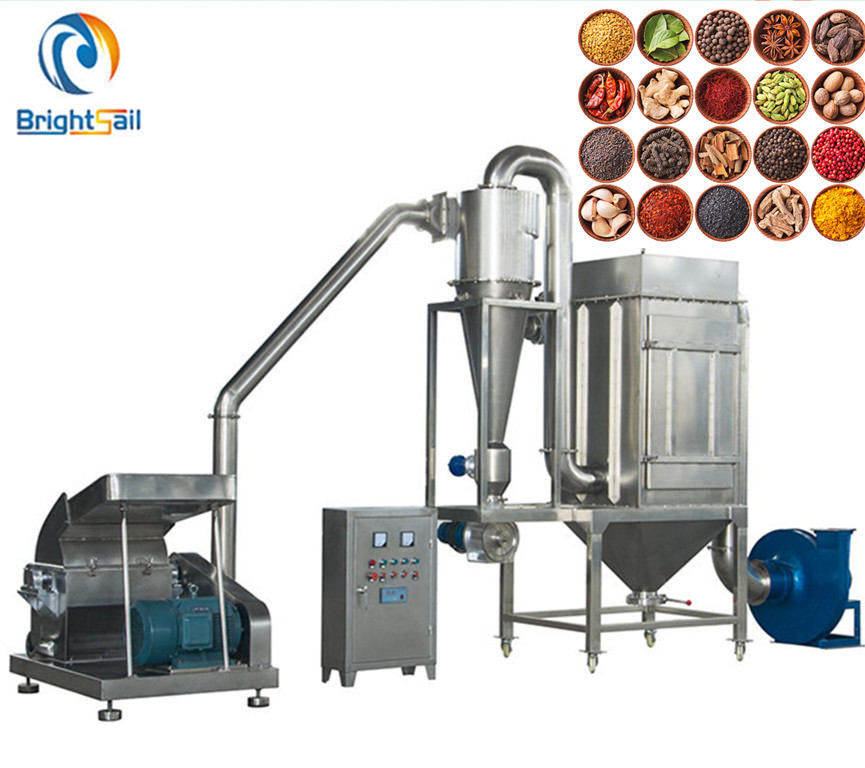

Detailed Images of BS pulverizer machine:
Main features:
1) Simple structure ,easy in installation and maintenance.
2) Adopting advanced world famous brand motor ,electric parts,bearing and operation parts.
3) No dust during production, and dust can be collected in dust collecting box.
4) During production,temperature remains normal, will not get hot. So material's color and nature won't change.
5) It can grind spice and oil material with oil content 10%~20%.
Our service:
1) Professional advice and rich experience help to choose machine.
2) Longtime maintainance and considerate technical support
3) Technicians can be sent to abroad to install.
5)One year guarantee, whole life service. Within1 year, any problem part can send to us, we can give provide free new part(only damaged by machine itself).
4) Any problem before or after delivery, you could find and talk with us anytime. We will free supply technical support.
5) Video / CD of test running and installation, Maunal book, tool box sent with machine if client request.
Technical data:
| Model | BS-400 | BS-630 | BS-880 | BS-1000 |
| Capacity(kg/h) | 80-1200 | 400-1800 | 800-2500 | 1000-3000 |
| Fineness(mesh) | 12-120 | 12-120 | 12-120 | 12-120 |
| Main crush motor(kw) | 22 | 37 | 45 | 55 |
| Overall size(L*W*H)(mm) | 5400*1300*2700 | 6800*1300*2700 | 7800*1800*3200 |
8800*2000*3300 |
Why Choose Us:
Within years, we have exported machine to over 30 countries.
For example, New Zealand, Germany, Poland, Thailand, Pakistan, Qatar, Nigeria and many other countries.
So you do not need to worry about the export procedures because we know all the procedures.
