Product Details:
|
| Product Name: | Double Shaft Paddle Powder Mixer Blender Mixing Machine | Material: | SUS304,SUS 316,carbon Steel |
|---|---|---|---|
| Application: | Food,chemical,pharmaceutical,etc | Motor Power: | 3-75kw |
| Volume: | 100-10000L | Warranty: | One Year |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| High Light: | vegetable powder making machine,sugar powder making machine |
||

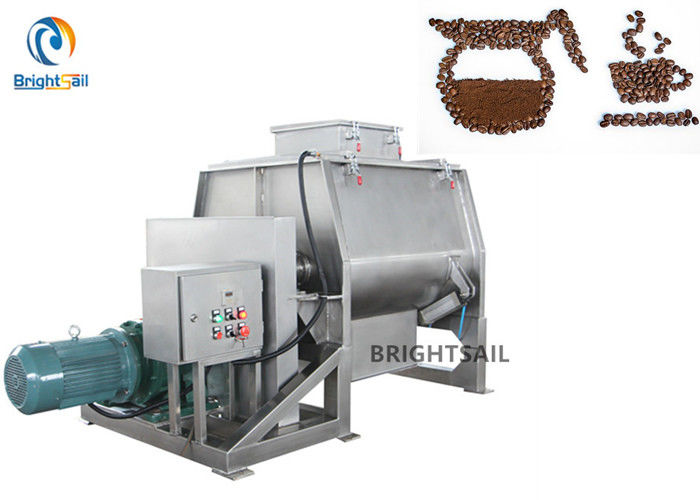

Instant coffee food powder blender machine cocoa flour double shaft paddle mixer
BSL double shaft paddle mixer is widely used in chemical industry, building materials, medicine, agriculture and other industries in the mixing of powder material. Application in chemical, medicine, food and other industries, selects the stainless steel no gravity mixing machine, inside and outside polishing, which meets the GMP requirements.
1) The whole mixing process is mild, make sure no material breaks.
2) Even mixing and large adjustable loading range.
3) Large discharging door make the discharging speed quick, and no remains.
4) Structure compaction, pleasing appearance, stable property, low noise, no environment pollution.
5) Air seal main shaft, reduces the friction between main shaft and material, and increase operating life.
Working method:
The chain is driven by a directly connected reducer, which drives the dual-axis rotor to move in reverse at a certain speed, and the materials on both sides move in their own reverse area, moving back and forth to obtain the direction and dissolve, infiltrate and mix with each other, forming a flow in the center The normalized weightless zone and swirling vortex flow continuously in the axial and radial directions, thereby forming a full range of combined cycles, so as to quickly obtain a uniform mixing effect.
Technical data:
|
Model
|
Work
volume
|
Speed
(rpm)
|
Motor
power(KW)
|
Overall size (L*W*H)
(mm)
|
Weight
(kg)
|
Output size
(mm)
|
|
BSL-100
|
60L
|
2*57
|
3
|
1320(L)*700(W)*700(H)
|
320
|
2*200*50
|
|
BSL-300
|
180L
|
2*57
|
5.5
|
1242(L)*1278(W)*1025(H)
|
750
|
2*250*60
|
|
BSL-500
|
300L
|
2*51
|
7.5
|
1412(L)*1410(W)*1230(H)
|
1000
|
2*300*80
|
|
BSL-1000
|
600L
|
2*43
|
15
|
1875(L)*1610(W)*1350(H)
|
1550
|
2*350*120
|
|
BSL-2000
|
1200L
|
2*43
|
18.5
|
2312(L)*2160(W)*1775(H)
|
2500
|
2*350*120
|
|
BSL-3000
|
1800L
|
2*36
|
22
|
2408(L)*2400(W)*1955(H)
|
2900
|
2*350*120
|
|
BSL-4000
|
2400L
|
2*36
|
30
|
2822(L)*2546(W)*2015(H)
|
3600
|
2*360*140
|
|
BSL-6000
|
3600L
|
2*29
|
45
|
3075(L)*2980(W)*2235(H)
|
5600
|
2*700*140
|
|
BSL-8000
|
4800L
|
2*29
|
55
|
3278(L)*3426(W)*2425(H)
|
7100
|
2*700*140
|
|
BSL-10000
|
6000L
|
2*29
|
75
|
3538(L)*3645(W)*2615(H)
|
8000
|
2*800*140
|
