Product Details:
|
| Product Name: | Double Shaft Paddle Powder Mixer Blender Mixing Machine | Material: | SUS304,SUS 316,carbon Steel |
|---|---|---|---|
| Application: | Food,chemical,pharmaceutical,etc | Motor Power: | 3-75kw |
| Volume: | 100-10000L | Warranty: | One Year |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| High Light: | spice powder making machine,pepper powder making machine |
||

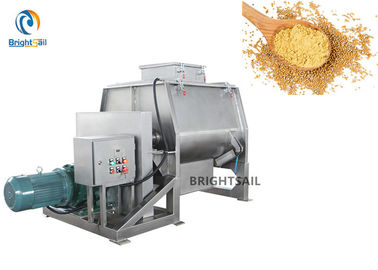

Commercial spice powder mixer machine cinnamon seasoning flour blender machine
BSL double shaft paddle mixer is widely used in chemicals, cosmetics, detergents, pesticides, dyes, food, brewing, feed, building materials, ceramics, coatings, resins and other materials. It has the characteristics of short stirring time and high stirring uniformity.
1. Discharging door adopted full open structure and big angle,ensure material complete discharge and decrease vestigital.
2. The discharging door molding rubber seal to ensure no leakage material.
3. Shaft end adopted packing seal, without leakage material, big access door structure, easy for clean and change paddle.
4. Equipped with oil liquid adding system, can add variety of liquid.
5. According to the need can choose stainless steel or semi-stainless steel or carbon steel material to manufacture.
6. Low wearing of the belt, easy to maintenance and repair.
7. Material mixing uniformity in zero gravity, not affected by material particle size, density and other factors.
Working method:

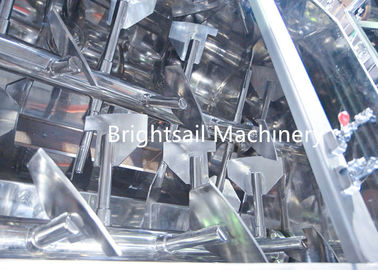

Double-shaft paddle mixer consists of two rotors with reverse rotation directions, welding many paddles in the rotor with different special angles. Paddles make the materials counterclockwise rotating along slot inner wall, and make materials stirring left and right. The overlapped area of two rotors makes a zero-gravity area, no matter what size, shape and bulk density materials are, they are even mixed in the mixer.
Technical data:
|
Model
|
Work
volume
|
Speed
(rpm)
|
Motor
power(KW)
|
Overall size (L*W*H)
(mm)
|
Weight
(kg)
|
Output size
(mm)
|
|
BSL-100
|
60L
|
2*57
|
3
|
1320(L)*700(W)*700(H)
|
320
|
2*200*50
|
|
BSL-300
|
180L
|
2*57
|
5.5
|
1242(L)*1278(W)*1025(H)
|
750
|
2*250*60
|
|
BSL-500
|
300L
|
2*51
|
7.5
|
1412(L)*1410(W)*1230(H)
|
1000
|
2*300*80
|
|
BSL-1000
|
600L
|
2*43
|
15
|
1875(L)*1610(W)*1350(H)
|
1550
|
2*350*120
|
|
BSL-2000
|
1200L
|
2*43
|
18.5
|
2312(L)*2160(W)*1775(H)
|
2500
|
2*350*120
|
|
BSL-3000
|
1800L
|
2*36
|
22
|
2408(L)*2400(W)*1955(H)
|
2900
|
2*350*120
|
|
BSL-4000
|
2400L
|
2*36
|
30
|
2822(L)*2546(W)*2015(H)
|
3600
|
2*360*140
|
|
BSL-6000
|
3600L
|
2*29
|
45
|
3075(L)*2980(W)*2235(H)
|
5600
|
2*700*140
|
|
BSL-8000
|
4800L
|
2*29
|
55
|
3278(L)*3426(W)*2425(H)
|
7100
|
2*700*140
|
|
BSL-10000
|
6000L
|
2*29
|
75
|
3538(L)*3645(W)*2615(H)
|
8000
|
2*800*140
|
