Product Details:
|
| Product Name: | Grain Powder Making Grinding Flour Milling Pulverizer Machine | Warranty: | One Year |
|---|---|---|---|
| Application: | Food,chemical,medicine,etc | Capacity: | 50-5000 Kg/h |
| Fineness: | 10-120 Mesh | Material: | SS304/316 |
| Voltage: | Customized | Package: | Container |
| High Light: | pepper powder making machine,chili powder making machine |
||

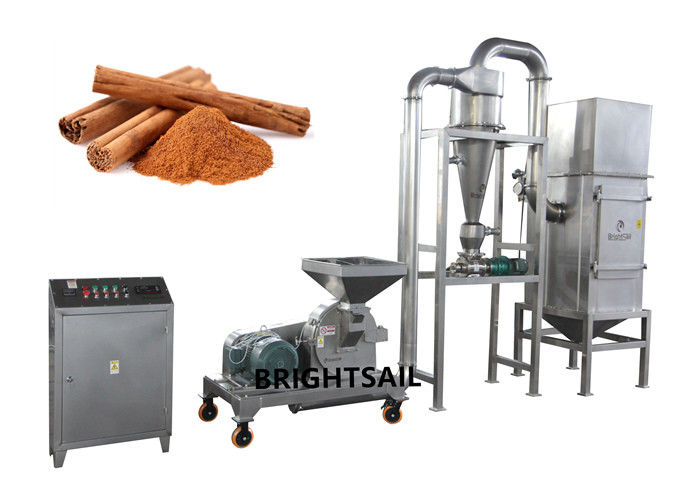

Universal spice powder grinder machine cinnamon garlic pepper grinding machine

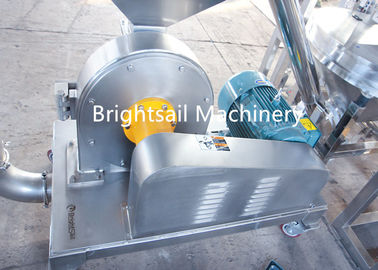

Our BSG self-absorb grinding set is suitable for pharmaceutical, chemical, pesticide, food and food and other industries, the use is very extensive. The machine uses the movable teeth plate and the fixed tooth to cross examine the high speed relative motion, which causes the crushed material to be crushed by the impact of the tooth, the friction and the other the impact of each other. The machine has simple structure, solid, stable operation, good crushing effect, Crushed material can directly by the host grinding chamber, the different pellets size can be obtained by changing different aperture of mesh.
Working method:
Raw material enters into the grinding chamber through the feed hopper, impacted by the high speed rotary cutter, thrown to the fixed liner, then is bounced and sheared. Beside the grinding chamber there is a high speed fan blade, which produces positive pressure air flow, under the force the pressure air, powder goes through the screen more quickly and be absorbed into the cyclone. Part of the superfine powder goes to the pulse dust collecting box, so there is no waste and no fly dust during production.
Main Features:
1. This machine structure is simple and strong, stable running,crushing the material fast, uniform, high efficiency.
2. Machine for 304 stainless steel material production, casing internal (crushing slot) all tooth surface precision machining so as to achieve smooth, easy to clean, to change the ordinary.
3. This machine can meet the national standards, meet GMP requirement.
Our company:
Brightsail Machinery is a company specializing in the design, development, manufacture and sale of pharmaceutical, chemical and food machinery. Our products include pulverizers, mixers, dryers, packaging machines, conveyors, etc. After years of research and development, we have become one of the most popular suppliers in the industry. At the same time, our products have been sold to more than 50 countries and regions, and have been well received by customers. If you are interested in our products, please feel free to contact us.
Technical data:
| Model | BSG-300 | BSG-400 | BSG-500 | BSG-600 | BSG-700 |
| Speed of principal axis(rpm) | 5300 | 4800 | 3800 | 3300 | 2800 |
| Crusher motor(kw) | 5.5 | 7.5 | 15 | 22 | 30 |
| Blower(kw) | 4 | 5.5 | 7.5 | 11 | 15 |
| Discharge motor(kw) | 0.37 | 0.75 | 0.75 | 0.75 | 1.1 |
| Grinding capacity(kg/h) | 50-500 | 100-1000 | 300-1500 | 500-2500 | 1000-5000 |
