Product Details:
|
| Warranty: | One Year | Capacity: | 100-2000 Kg/h |
|---|---|---|---|
| Fineness: | 10-120 Mesh | Motor: | 22-75kw |
| Discharge Motor: | 0.75-1.5kw | Blower: | 7.5-18.5 Kw |
| Voltage: | Customized | Package: | Container |
| High Light: | spice powder making machine,chili powder making machine |
||

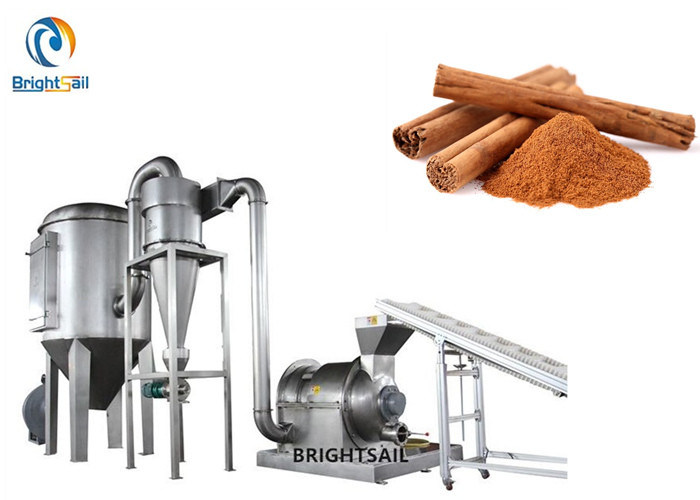

100-2000 Kg/H Spice Powder Grinding Machine Cinnamon Chili Hammer Pulverizer

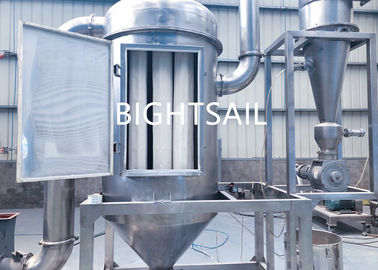

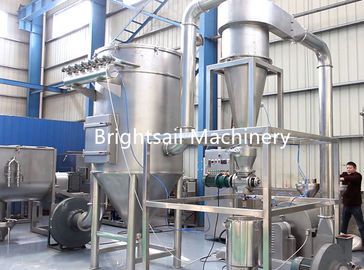

BSDF advanced hammer mill is applied in sush trades as pharmaceutical, chemical, foodstuff,etc. It is made up of crusher, cyclone separator, pulse dust-evacuator box and blower. It can crush spice and oily material and it is also suitable for chinese herb with high fiber content. The crushing size is controlled by the speed of inverter,and continuous production can be achieved under normal temperature.
Besides, the material can be fed into the machine directly without coarse crushing. It has the features of big capacity, not changing the color, maintaining the physicochemical characteristics of the material.
Working method:

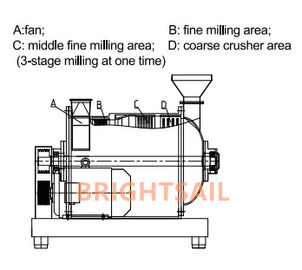

The BSDF mill part includes 3 groups of knives, they are 1.coarse crush knife group,2. middle fine crush knife group ,3.fine milling knife group.Each group has one unit of knives and one liner.Material is fed into the mill chamber,pass through the high speed rotation caused by the three groups of knives one by one.Material is crushed three times in one mill chamber, then become fine powder.Between middle fine crush knife group and fine mill knife group, there is a device designed for preventing coarse granule go to fine milling area,so powder fineness is assured.The rotor speed is controlled by inverter, different particle size is achieved by adjusting rotation speed.There is no screen mesh in mill chamber,so only very little heat rises in mill chamber.
Main features:
1. This grinding machine is widely used in food, chemical and pharmaceutical industry.
2. For normal material, it can grind into 10-120 mesh.Customer can get different powder particle size by changing the speed of inverter.
3. This machine has different models, capacity from 100-2000 kg/h, customers can choose the right model according to their requirement.
4. The temperature will not rise during the crushing process nearly, so you don't worry that the powder will be stuck on the mill chamber.
5. Stable quality of finished product with low consumption to save cost.
6. Simple structure, convenient cleaning and low noise.
FAQ:
1) Q: If I want to come to your company, how come?
A: You can fly to Shanghai, then go to the Shanghai railway station, then take the high-speed train from Shanghai to Wuxi, it takes about 40 minutes.
We will pick you up at Wuxi Railway Station, and we will drive from Wuxi Station to our company for about 40 minutes.
There is also an airport in Wuxi. If you fly to Wuxi Airport, we can also pick you up from Wuxi Airport and drive from Wuxi Airport to our company for about 50 minutes.
2) Q: How do you pack your machines?
A: If it's a small machine, it's packed in wooden cases.
If it is a large machine or many machines, we will take the container, we will split the machine into several parts, then wrap the machine with wrapping film, and then fix it in the container with wire rope to prevent them from shaking during transportation.
Technical data:
| Model | BSDF-350 | BSDF-450 | BSDF-550 | BSDF-650 | BSDF-750 |
| Capacity(kg/h) | 100-200 | 300-500 | 400-800 | 600-900 | 800-1300 |
| Fineness(mesh) | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 |
| Grind motor(kw) | 22 | 37 | 45 | 55 | 75 |
| Discharge motor(kw) | 0.75 | 0.75 | 0.75 | 1.1 | 1.5 |
| Blower(kw) | 7.5 | 15 | 15 | 18.5 | 18.5 |
| Rotor speed(rpm) | 3500-4500 | 3300-4200 | 2900-3600 | 2400-3100 | 2100-2700 |
Application:
Good comments from customers:
