Product Details:
|
| Product Name: | Hot Air Circulating Fruit Vegetables Spices Food Drying Oven Machine | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Heating Source: | Steam+electricity | Warranty: | One Year |
| Material: | Stainless Steel 304 | Temperature Range: | 20-160(adjustable) |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| High Light: | oven dryer machine,air circulation oven |
||

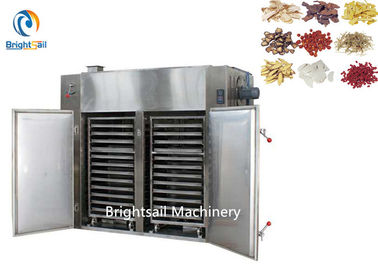

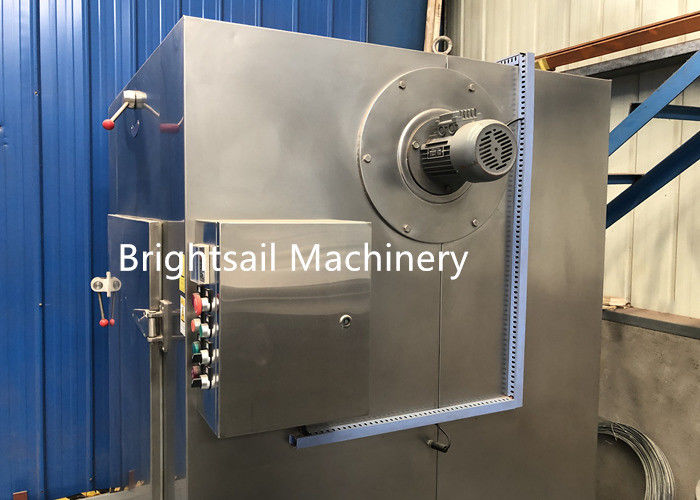

Electric dryer oven machine moringa leaf plantain chips drying machine with CE
BSO hot air circulation drying machine is suitable for heating and solidification, drying and dehydrtion of raw materials in pharmaceutical industry, chemical industry, foodstuff industry, agricultural and sideline products, aquatic products, light industry, heavy industry and so on, such as raw material medicine, Chinese herb, root, grain, spices, seafood, cassava, fruits, vegetables,etc.
Working method:
The hot air circulating drying oven work principle is that used steam or electric heating air, then made a cycling drying with heated air. There are even drying and lower discre-paney of temperature difference in the each side of even.In the drying course of suppling continuously flesh air and discharging hot air so that the even might be in good condition and kept proper temperature and humidity.
Main features:
1. High thermal efficiency, energy conservation.
2. Utilizing the principle of forced ventilation box with adjustable air divider plate, uniform drying.
3. Machine has low noise, smooth operation. Temperature controlled, easy installation and maintenance.
4. Wide range of applications, can be used for drying various materials and is a versatile drying equipment.
5. The material is stainless steel, keep the machine durable using.
Our service:
Pre-sales services
* any concerns of our machine by email/phone will be replied ASAP within 24 hours
* according to the customers’ requirements and circumstance to make the best design
* to support factory layout
In the sale of services
* we are in charge of installing,debugging and training
* technical guidance of frequently asked questions
After-sales service
* one year guarantee for whole machine except of quick-wear part
* 24 hours technical support by email/phone
* calling, network or door-to-door service
Technical data:
| Model | BSO-O | BSO-I | BSO-II | BSO-III | BSO-IV |
| Capacity(kg/batch) | 60 | 120 | 240 | 360 | 480 |
| Blower power(kw) | 0.45 | 0.45 | 0.9 | 1.35 | 1.8 |
| Steam expend(kg/h) | 15 | 20 | 40 | 60 | 80 |
| Electric-heating power(kw) | 9 | 15 | 30 | 45 | 60 |
| Down temp(℃) | ±2 | ±2 | ±2 | ±2 | ±2 |
| Tray(piece) | 24 | 48 | 96 | 144 | 192 |
| Weight(kg) | 820 | 1500 | 1800 | 2200 | 2800 |
