Product Details:
|
| Product Name: | Hot Air Circulating Fruit Vegetables Spices Food Drying Oven Machine | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Heating Source: | Steam+electricity | Warranty: | One Year |
| Material: | Stainless Steel 304 | Temperature Range: | 20-160(adjustable) |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| High Light: | oven dryer machine,air circulation oven |
||

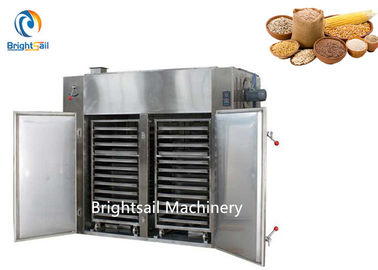

Hot air circulation dryer oven machine cassava vegetables food drying machine
BSO hot air circulation drying machine is mainly used in drying vegetables, fruit, seafood, herbs, grains, leaves, cassava, etc, which is widely applied in food, chemical, pharmceutical and other industries. The productivity is high and with low consume.
Working method:
It uses steam or electricity as heat energy. There is a steam radiator or electric heating element to generate heat. Use the fan to perform convective heat exchange, to transfer heat to the material, and to continuously replenish fresh air and exhaust humid air. The proper relative temperature and humidity are maintained in the box during the drying time. The biggest feature is that most of the hot air is circulated in the box, which enhances heat and mass transfer and saves energy. These two series are widely used for heating and dehumidifying raw materials and products in pharmaceutical, chemical, food, light industry and heavy industry.
Main Structure:
This machine is mainly composed of drying chamber, combustor, electric heating tubes, ventilation system and control system.
1. Drying Chamber: By utilizing stainless steel inside and coated steel plate outside, the drying chamber saves cost while ensures hygiene and corrosion resistance in the drying process.
2. Combustor: To cope with the smoke and fume produced during the process, the combustor is connected with a chimney, efficient and convenient.
3. Ventilation: When it comes to moisture control, the ventilation system plays an important role in balancing the moisture and air in the machine.
4. Control System: The control cabinet controls the electric heating tubes and fans. Additionally, it is installed with a temperature and moisture tester, which gives a convenient way to user for knowing the present condition.
Main features:
1.Use centrifugal multi-wing type blower circulatory system; special air duct structure, stable temperature control, uniform temperature field; manufacturing process specifications; nice appearance; convenient in operation and maintenance; buys only need provide electric power and required working environment.
2.Supporting parts perfectly match with assembly; main functional elements are the international advanced level’s original parts.
3.Control system of drying oven is fitted with over temperature power-off protector and buzzing alarm, which can be safety used when no body is on duty in 24 hours.
4.Configure high-temperature silicone rubber sealing strip; human environmental awareness; ensure the health of workers.
Our service:
Pre-Sales Service:
1. Inquiry and sonsulting support
2. Sample testing support
3. Vist our factory
After-Sales Service:
1. Technical support for your installation, operation and maintenance.
2. One year's warranty, and you can pay for extended warranty
3. We supply the spare parts and technical support in & after the warranty time.
4. We supply the training course to your workers at our factory if you need
Technical data:
| Model | BSO-O | BSO-I | BSO-II | BSO-III | BSO-IV |
| Capacity(kg/batch) | 60 | 120 | 240 | 360 | 480 |
| Blower power(kw) | 0.45 | 0.45 | 0.9 | 1.35 | 1.8 |
| Steam expend(kg/h) | 15 | 20 | 40 | 60 | 80 |
| Electric-heating power(kw) | 9 | 15 | 30 | 45 | 60 |
| Down temp(℃) | ±2 | ±2 | ±2 | ±2 | ±2 |

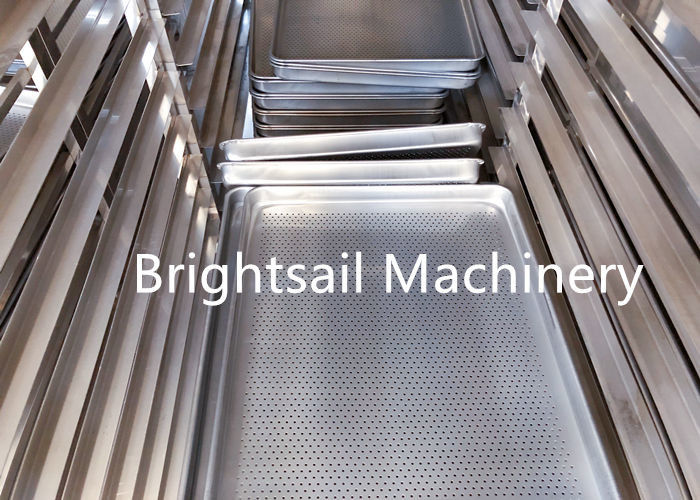

| Tray(piece) | 24 | 48 | 96 | 144 | 192 |
| Weight(kg) | 820 | 1500 | 1800 | 2200 | 2800 |
