Product Details:
|
| Product Name: | Hot Air Circulating Fruit Vegetables Spices Food Drying Oven Machine | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Heating Source: | Steam+electricity | Warranty: | One Year |
| Material: | Stainless Steel 304 | Temperature Range: | 20-160(adjustable) |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| High Light: | oven dryer machine,air circulation oven |
||
Industry dryer oven machine spice herb root red pepper turmeric drying machine

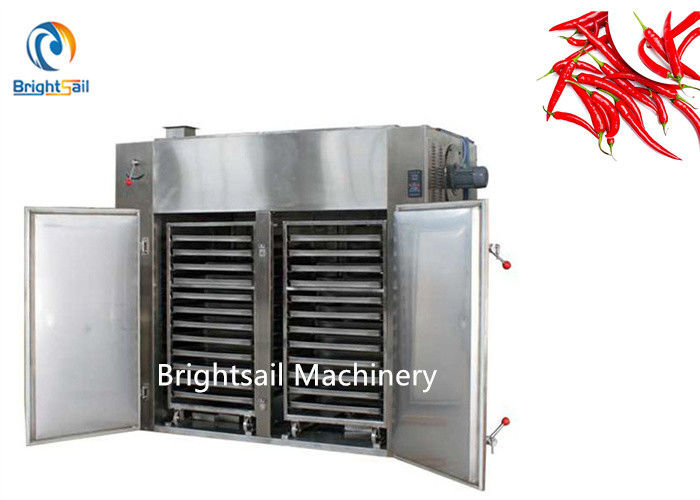

BSO hot air circulation drying machine is suitable to dry food materials, pharmacy materials, agriculture and sideline products, industry materials, and so on.
It is equipped with low noise & thermostability axial flow fan and automatic temperature control system, the whole circulatory system is whole sealing, these let the drying oven’s heat efficiency higher than traditional type. And it adopts forced ventilation action, there are adjustable hot-blast air distributing plate in the drying oven which can make the materials to dry uniformity.
Working method:
It is a high-temperature heat pump dryer unit, the working principle is: Compress the refrigerant through the compressor to form the high temperature and high pressure gas, this gas went into the condenser to release heat , the heat would be send into the barn with by circulating fan to heat the barn air. With the air temperature increases, the moisture in the drying material will gradually evaporate, and then exhaust of moisture by the fresh air dehumidification system, to achieve the effect of drying.
Main features:
1. The control cabinet adopts button control (touch mode control is available at request), it is convenient to operate, and prolongs the service life.
2. Most of the hot air is circulated in the herbs dehydration machine. By using the forced ventilationfuntion, there are adjustable air distribution inside the oven. The materials can be dried uniformly.
3. It makes use of enhanced ventilation; there is adjustable air distributing plate in oven that enables the material to be dried evenly,
4. The whole machine has low noise and balanced running, automatic temperature control, and it is convenient to install and maintain.
5. Wide application range, it is able to dry various materials. It is a universal type drying equipment.
Our services:
Pre-Sales Service:
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Introduce the product to the customer in detail, answer the question raised by customer carefully.
* Make plans for choice according to the needs and special requirements from customer.
After-Sales Service:
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Provide technical support
* Provide spare parts with cost price.
* Establish long-term and friendly relationship
Technical data:
| Model | BSO-O | BSO-I | BSO-II | BSO-III | BSO-IV |
| Capacity(kg/batch) | 60 | 120 | 240 | 360 | 480 |
| Blower power(kw) | 0.45 | 0.45 | 0.9 | 1.35 | 1.8 |
| Steam expend(kg/h) | 15 | 20 | 40 | 60 | 80 |
| Electric-heating power(kw) | 9 | 15 | 30 | 45 | 60 |
| Down temp(℃) | ±2 | ±2 | ±2 | ±2 | ±2 |
| Tray(piece) | 24 | 48 | 96 | 144 | 192 |
| Weight(kg) | 820 | 1500 | 1800 | 2200 | 2800 |
