Product Details:
|
| Product Name: | Grain Powder Mill Grinder Milling Making Machine Air Classifier Mill | Material: | SS 304/316 |
|---|---|---|---|
| Capacity: | 20-1800 Kg/h | Input Size: | <15 Mm |
| Fineness: | 60-2500 Mesh | Crusher Motor: | 11-75 Kw |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| High Light: | flour making machine,powder grinding mill |
||
Air Classifier Mill Powder Milling Machine Superfine pulverizer 20-1800 Kg/H

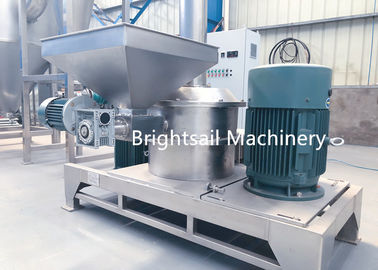

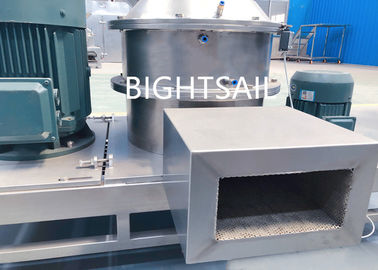

BSP ultra-fine pulverizer consists of the main motor, auxiliary motor and electrical control cabinet with the capabilities of winnowing, non-sieve or mesh, equality of granule size and continuous processing etc. It meets the international advanced level and is suitable for the material grinding by the trade of pharmaceutics, chemical, and foodstuff etc.
Working method:

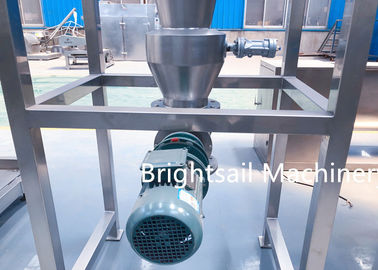

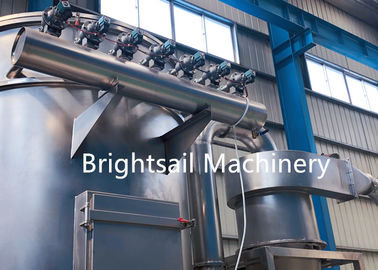

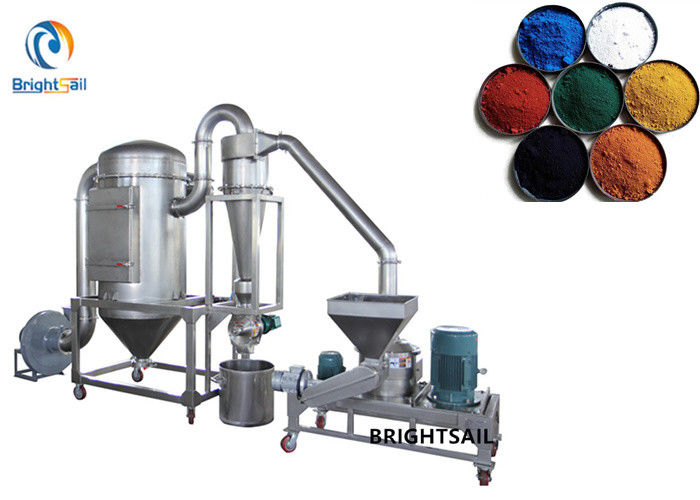

Raw material is transported into the milling chamber via hopper by screw feeder, been cut and sheared by the high speed rotating cutters and gear rings inside the chamber to complete the pulverizing process, and the matched sizes powders will be classified out from the chamber by the help of the air classifying device, the RPM of classifying device is adjustable for ensure the classified out powder's size be different as required. Then the powders go into the cyclone unit and discharging. Some mini-powder dust will be suck into the Dust-Collector for recycling.
Main features:
1. With water cycle and wind cooling,the machine can be applied into processing heat sensitive material.
2. With the tail-wagging air stream(partly eddy flow)produced by the tail-wagging of the main shaft capstan of the machine(without sieving).
3. Both the board and the cutting blade are made of abrasion-resistant steel,with excellent performance after heat treatment.
4. With severeness of framework,the volume of the machine is quite small.If you open door closure,you can maintain it.It is completely airproof and without any dust leakage.
5. With winding reclaiming equipment,the machine is features by cooling materials evenly,quick cooling and some other characteristics.
Our service:
1. Gathering all necessary information for the client's project.
2. Professionally recommending the right suitable machines to the client.
3. Contract/business negociating sign based on both parties' benefits.
4. Full days' supervision on ordered machines' production and report to the client.
5. Compact packings for international transportation standard deliverying to the client.
6. Offering all necessary documents(Invoice, packinglist, Certificates, etc.) as asked.
7. Professional Engineers available for installation and commissioning.
8. One year's warranty for the machines.
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Application:
