Product Details:
|
| Product Name: | Grain Powder Mill Grinder Milling Making Machine Air Classifier Mill | Material: | SS 304/316 |
|---|---|---|---|
| Capacity: | 20-1800 Kg/h | Input Size: | <15 Mm |
| Fineness: | 60-2500 Mesh | Crusher Motor: | 11-75 Kw |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| High Light: | rice powder mill,flour making machine |
||

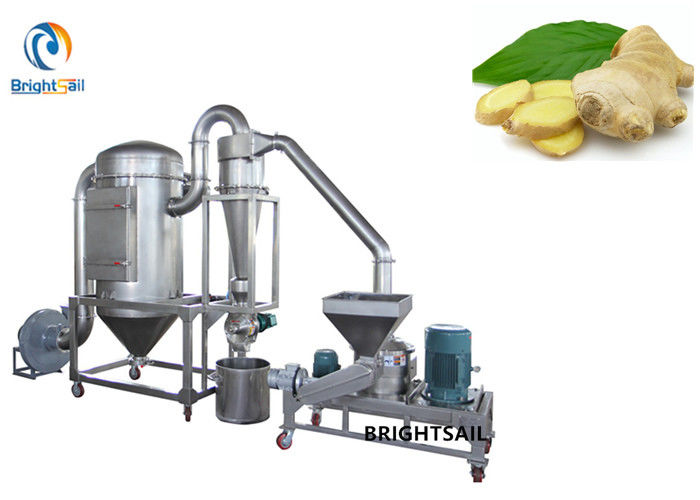

Industry ginger powder milling machine moringa leaf cassava flour mill grinder
BSP ultra-fine pulverizer is developed and optimized based on the similar domestic and foreign products with our practical experience, it is widely applied in food, chemical, pharmaceutical and other industries.
Can be connected with air classifier consisting of production line for protein separating and extracting from agricultural product, for example:pea protein, wheat protein. Heat-sensitive, inflammable and explosive materials can be ground with inert gases, which can be cycle use.
Application:
Chemical new material, additive, non-metallic mineral, food, medicine, new energy, agricultural chemicals, coatings, dye, electronic materials, flame retardants, rubber additives, ceramic, calcined kaolin, light calcium carbonate, aluminum hydroxide, aluminum oxide, mica, graphite, AC foaming agent, petroleum coke, the flake, acicular, fibrous material.
Working method:
Material feed into the grinding chamber by a dosing feeder, they are impacted, sheared and grinded by high speed rotating unit and stator equipped with grinding tooth,the powdered material enters into the classifying area, under the action of centrifugal force from classifying wheel inside of impact mill and draught fan, the qualified powder is collected by the cyclone and bag filter, the oversized powder is continued to grinding.By adjusting the classifying wheel speed to get different fineness products.
Main features:
1. The grinder is integrated with the classifier, and there is no over-grinding.
2. Sharp particle size distribution, fineness 60-2500 mesh adjustable.
3. The internal temperature is reduced by airflow, and the grinding chamber is cooled by a water-cooled jacket, which is suitable for heat-sensitive materials.
4. No dust pollution in negative operation.
5.The grinder is equipped with a slag discharge device, which can automatically discharge hard impurities.
6. Compact structure, less wearing parts, easy maintenance.
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
