Product Details:
|
| Product Name: | Grain Powder Mill Grinder Milling Making Machine Air Classifier Mill | Material: | SS 304/316 |
|---|---|---|---|
| Capacity: | 20-1800 Kg/h | Input Size: | <15 Mm |
| Fineness: | 60-2500 Mesh | Crusher Motor: | 11-75 Kw |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| High Light: | ultra fine powder grinder,industrial powder grinder |
||

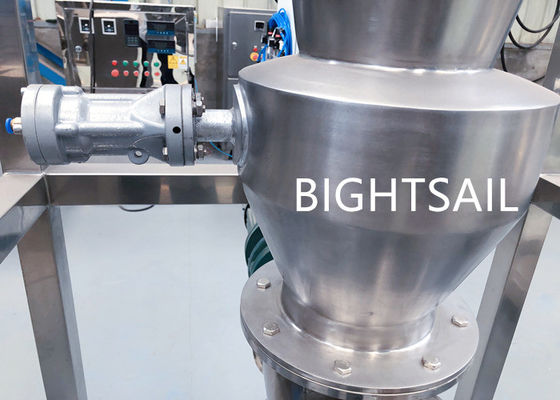

Super fine powder grinder machine cocoa oyster shell seaweed pulverizer machine
BSP ultra-fine pulverizer consists of machine body frame, drive motor, screw feeder, grinding chamber, cyclone, bag filter, draft fan and control cabinet. It has been widely used for pulverizing high fiber content materials, heat sensitive materials and brittle materials in food, chemical and pharmaceutical industry.
It has no screen and the fineness of finished products is obtained by adjusting the speed, and it can be produced continuously.
Working method:
The raw materials enter the crushing chamber through screw feed, and are cut and sheared by high-speed cutters and eddy currents generated by high-frequency vibration. Due to the effect of negative pressure, the crushed powder enters the common wheel, and through the rotation of the stage wheel and the centrifugal force of the air knife, the powder larger than the stage particle size is returned to the crushing chamber, and the qualified powder enters the pipe for discharge.
Main features:
1. The design is compact and structure is reasonable. The machine is equipped with an internal classification mechanism so that grinding and classification are carried out simultaneously, thus reducing energy consumption.
2. Equipped with a blower, which dissipates the heat in the machine continuously, the machine is fit for the grinding of thermal sensitive materials.
3. Having a great adaptability and narrow granularity distribution. The granularity of the product is even and fineness may reach 60-2500 mesh.
4. Regulate the speed of the classifier or amount of the air without stopping the machine and evenly distributed products of the required granularity will be obtained.
5. The top cover of the main machine is opened with pneumatic springs and the body is constructed in such a way that it may be opened to two sides so that no hindrance will be met in cleaning and servicing the internal parts.
6. The main grinding parts are made of high-grade alloy tool steel so that the service life or change cycle of the wear parts is greatly lengthened.
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
