Product Details:
|
| Product Name: | Grain Powder Mill Grinder Milling Making Machine Air Classifier Mill | Material: | SS 304/316 |
|---|---|---|---|
| Capacity: | 20-1800 Kg/h | Input Size: | <15 Mm |
| Fineness: | 60-2500 Mesh | Crusher Motor: | 11-75 Kw |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| High Light: | flour making machine,powder grinding mill |
||
Animal food powder milling machine pigeon peas besan red rice pulverizer machine
BSP ultra-fine pulverizer can make super fine powder and no need sieve or screen, and powder size can be changed by changing speed.
This machine is widely used for pulverizing high fiber content materials, heat sensitive materials and brittle materials in food, chemical and pharmaceutical industry.
Working method:

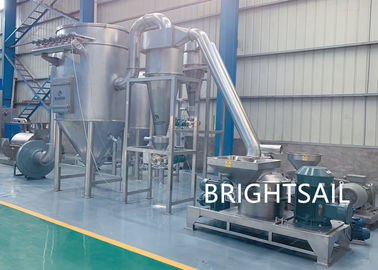

The materials enter the classifying chamber through the feed system, and fully mixed with the air to make the materials fluidized. The coarse particle settles down due to its own gravity, while the fine powder is brought to the turbine classifying sections by the uprising airflow together with a few coarse particles. The coarse particles and the fine powder will be separated by the centrifugal force of classifying wheels and draught of blower. The qualified fine powders will pass through classifying wheel to be collected by fine-powder collection system, while the coarse particles will be letting down along the cylinder wall by centrifugal force and gravity. In the end, the coarse powder will be discharged from the bottom of the classifier.
Main features:
1. The energy consumption can be decreased by 50% under the same throughput compared with the traditional turbo-type classifier, and the classifying efficiency increased by 50%.
2. Compared with the traditional turbo-type classifier, its rotating speed of the classification wheel can be reduced by 50- 60% for the same separating grain size to insure the classification precision and increase the mechanical stability.
3. Accurate cutting points, no big particle in the final products.
4. Good abrasive-resistance, especially suitable for classifying super-hard and high-purity materials.
5. It can separate the coarse powder of the super micro-powders and nano-powders, classifying the materials with different densities and shapes and strong glutinous and agglomerate materials which are difficult to disintegrate and flow.
6. Convenient operation and good production environment.
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
