Product Details:
|
| Product Name: | Pepper Powder Grinding Spice Milling Dry Herb Leaf Grinder Machine | Material: | SS304/316 |
|---|---|---|---|
| Feed Size: | <10mm | Output Size: | 10-120 Mesh |
| Capacity: | 20-800 Kg / H | Voltage: | 220-480 V |
| High Light: | 800 kg / h powder grinding machine,10mm powder milling machine |
||

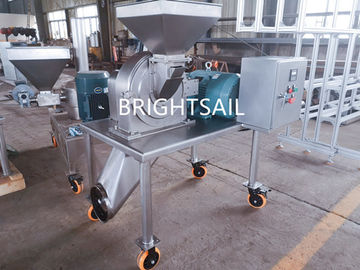

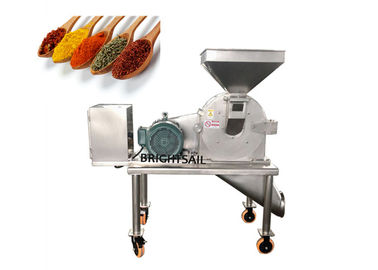

Pepper powder grinding spice milling dry herb leaf grinder machine
BSU universal crusher is suitable for industries such as pharmacy, chemical, food and so on. Processing hard and difficult-to-crush materials, including crystal materials, Chinese herbal medicine and rice, etc., can also be used as a supporting equipment for the previous process of micro-grinder and ultra-micro-grinder.
Principle:
This machine adopts impact crushing method. After the material enters the crushing chamber, it is impacted by movable knives rotating at high speed, and is crushed by the collision between the gear ring and the material. The crushed material enters the cloth bag through the screen hole with the help of airflow.
Technical data:
| Model | BSU-20 | BSU-30 | BSU-40 | BSU-60 |
| Capacity(kg/h) | 20-150 | 30-300 | 50-400 | 100-800 |
| Size of input granules(mm) | <6 | <10 | <10 | <10 |
| Size of output granules(mesh) | 20-120 | 20-120 | 20-120 | 20-120 |
| Power(kw) | 4 | 7.5 | 11 | 22 |
| Speed of principal axis(rpm) | 4650 | 3800 | 3400 | 2800 |
| Overall size(L*W*H)(mm) | 650*820*1500 | 700*900*1650 | 750*1000*1750 | 950*1250*2150 |
| Weight(kg) | 230 | 330 | 430 |
900 |
Main features:
1. High efficiency and low noise
2. Reliable working performance and product quality.
3. Easy to operate and clean.
4. Low loss.
Applications:
| Knife type | Application |
 |
Herbal products, Brittle materials, like crystal sugar, salt... |
|
Grains, Beans, such as dry peas, rice,etc, can make fine flour than other type knives. |
|
Heat sensitive materials, Spices with high oil content, like chili, black pepper, coriander seeds... |
