Product Details:
|
| Material: | Carbon Steel/SS304/SS316 | Type: | Mixer Machine |
|---|---|---|---|
| Function: | Mixing | Usage: | Mix Powder Or Granules |
| Motor Brand: | Siemens; Chinese Brand | Power: | 0.75-45kw |
| MOQ: | 1 Set | Model: | BSV |
| Capacity: | 50-4000L | Name: | V Shaped Small Model Food Industry Dry Spice Powder Mixing Machine |
| High Light: | 45kw v shape powder mixer,4000L v shape powder mixer |
||

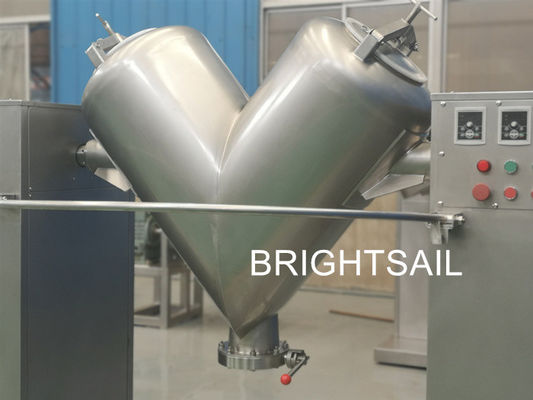

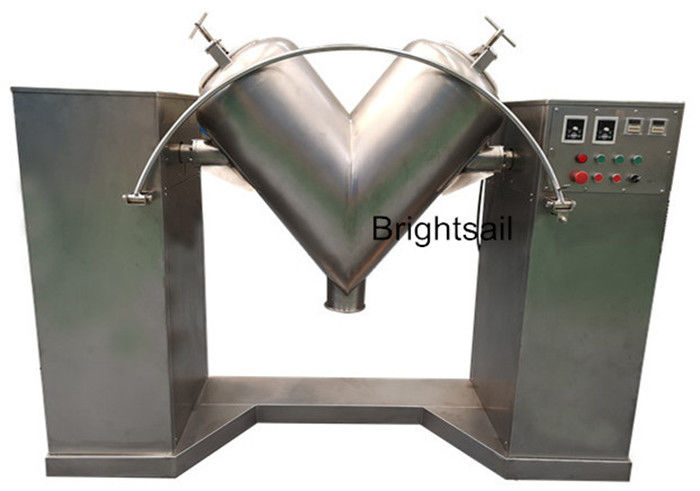

V shaped small model food industry dry spice powder mixing machine
BSV v shape mixer is used for mixing different kinds of dry granules and powder in lines of food, pharmacy or chemical industries. It consists of a slowly rotating drum, which makes the product slide gently through its smooth inner walls, performing an unforced mixing. When mixing powder with poor fluidity, it is better to add the agitator, which can make the mixing effect better.
Details:
Feed inlet Agitator
Advantages:
1. Repetitive mixings processes, reproducible and easy to scale up.
2. Mechanical simplicity, low maintenance required.
3. Very easy to clean.
4. Complete product discharge.
Technical data:
| Model | BSV-100 | BSV-200 | BSV-300 | BSV-500 | BSV-1000 |
| Barrel volume(L) | 100 | 200 | 300 | 500 | 1000 |
| Mixing time(min) | 4-8 | 4-8 | 6-10 | 6-10 | 6-10 |
| Load volume(L) | 50-60 | 100-120 | 150-180 | 250-300 | 500-600 |
| Mix motor Power(kw) | 1.1 | 1.1 | 1.1 | 2.2 | 4 |
| Agitator motor(kw) | 0.75 | 0.75 | 0.75 | 1.5 | 2.2 |
| Overall size(L*W*H)(mm) |
1840× 600×1430 |
2110× 600×1675 |
2280× 630×1780 |
2655× 1040×2250 |
3070× 1240×2490 |
| Weight(kg) | 230 | 290 | 400 | 550 | 850 |
Loading pictures:
