Product Details:
|
| Product Name: | 70-500kg/h Industrial Dry Beans Grinder Machine/powder Milling Machine | Material: | SS304/316 |
|---|---|---|---|
| Feed Size: | <10mm | Output Size: | 20-120 Mesh |
| Capacity: | 70-500 Kg/h | Voltage: | 220-480 V |
| Usage: | Make Powder | Application: | Food Industry |
| Type: | Universal Crusher | ||
| High Light: | 10mm Beans Grinder Machine,500kg/H Beans Grinder Machine,500kg/H bean grinder |
||

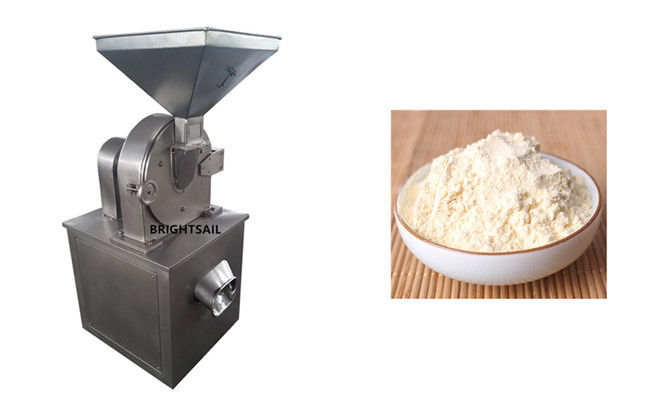

70-500kg/h industrial dry beans grinder machine/powder milling machine
Brief introduction:
BSU universal crusher utilizes the high--speed relative motion between the moving and regular tooth set, which makes the material crushed through concussion, rub and crush.
Features:
As the machine and the crushed material contact parts are all made of stainless steel, has good corrosion resistance, the current type of frame around all closed, easy to clean, the shell wall by machining all the surface formation, smooth, changed the The original wall rough, plot powder phenomenon, so that drugs, food and other production more in line with "GMP" standard.
Working principle:

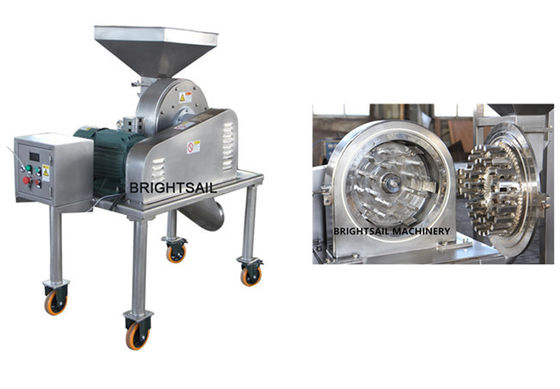

This series grinder spindle is equipped with movable gear plate, movable tooth plate with three laps of active teeth, the door has a fixed tooth plate, fixed gear tray with two rings of steel teeth fixed ring gear. Movable teeth on the movable gear are interdigitated with fixed ring gears. When the spindle high-speed operation, the activities of the tooth plate is also running, the material thrown into the hammer gap. In the material and the teeth or the mutual impact of materials, shear, friction and other comprehensive role, to obtain crushing. After the finished product through the screen, from the crushing chamber into the capture bag, coarse material will continue to crush. This series grinder simple structure, durable, high yield, smooth operation.
Application:
The series crusher is a stainless steel type grinder, which is suitable for the industries of medicine, chemical industry, pesticide, foodstuff. It crushes the dry brittle material. It is not suitable for the material with low softening point and high viscosity.
Technical data:
| Model | BSU-20 | BSU-30 | BSU-40 | BSU-60 |
| Capacity(kg/h) | 20-150 | 30-300 | 50-400 | 100-800 |
| Size of input granules(mm) | <6 | <10 | <10 | <10 |
| Size of output granules(mesh) | 20-120 | 20-120 | 20-120 | 20-120 |
| Power(kw) | 4 | 7.5 | 11 | 22 |
| Speed of principal axis(rpm) | 4650 | 3800 | 3400 | 2800 |
| Overall size(L*W*H)(mm) | 650*820*1500 | 700*900*1650 | 750*1000*1750 | 950*1250*2150 |
| Weight(kg) | 230 | 330 | 430 |
900 |
Our Service:
1) Professional advice and extensive experience help to choose the machine.
2) Lifelong maintenance and thoughtful technical support.
3) Test run and install video/CD, Maunal book, toolbox and machine to send.
4) Our engineers can install the machine abroad
5) One year quality assurance Material and process defects for equipment and parts are guaranteed for one year. Any parts that need to be replaced will be shipped free of charge, but will not include the installer. The warranty does not cover abuse or user error.
6) 24-hour online service Any questions will be answered within 24 hours
7) Our company can pay through T / T, L / C, Cash.
