Product Details:
|
| Product Name: | Seaweed Flour Milling Machine | Certification: | CI |
|---|---|---|---|
| Material: | SS 304/316 | Capacity: | 20-1800 Kg/h |
| Input Size: | <15mm | Fineness: | 60-2500 Mesh |
| Warranty: | 1 Year | Application: | Food,chemical,pharmaceutical,etc |
| Type:: | Electric Grinders | Poer:: | Customized |
| High Light: | CI small flour milling machine,CI Seaweed flour milling machine,15mm small flour milling machine |
||
Customized Seaweed Flour Milling Machine Grinder Machine
Product Description:

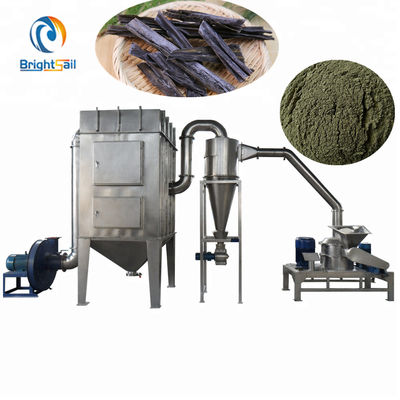

Seaweed grinding machine is made up of three parts:main machine,auxiliary machine and electric control box. seaweed powder grinding machine has the properties of wind selection,having no sieve or net,and an even granularity of the processed material.
The production process going on continuously,this BSP grinding machine is suitable for seaweed powder grinding.
Working method:
Raw material is delivered to the grinding chamber via hopper by spiral feeder, and is cut and sheared by the high speed cutters, then the material is moved into the whirlwind separator and the sack dust catcher by the negative pressure sucking method, the ejection material meets the product requirement.
Main components:
(1)The left motor is crush motor;the right motor is classifier motor.It adopts a small screw feeder, make sure feed speed is even and controllable.
(2)Material enters the mill chamber via screw conveyor where it is sheared and milled by fast- rotating blades.The powder passes the guide ring and enters the classifier chamber.
(3)Rotary valve make powder discharge speed even,Rotary valve is also made of stainless steel and to clean it and dismantle is convenient.
(4)Dust is collected inside the dust collecting box.
Main features:
1) Simple structure ,easy in installation and maintenance.
2) Adopting advanced world famous brand motor ,electric parts,bearing and operation parts.
3) No dust during production, and dust can be collected in dust collecting box.
4)No need screen, particle size can be changed by change speed; particle size varies from 80 to 500 mesh.
5) Around mill chamber and bearing, there is water-cooling jacket to cool the machine.
Detailed Images:
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Packing And Shipping:
1.We provide shipping methods:Courier service,Air transport,Sea Transport
2.Can accept order:Full container cargo load,Less container load
3.Delivery term :EXW,FOB,CIF,CNF etc.
We always choose the most economical and reliable shipping company to make sure you receive the goods in time. The BL and tracking number will be provided to you once the consignment is shipped.
