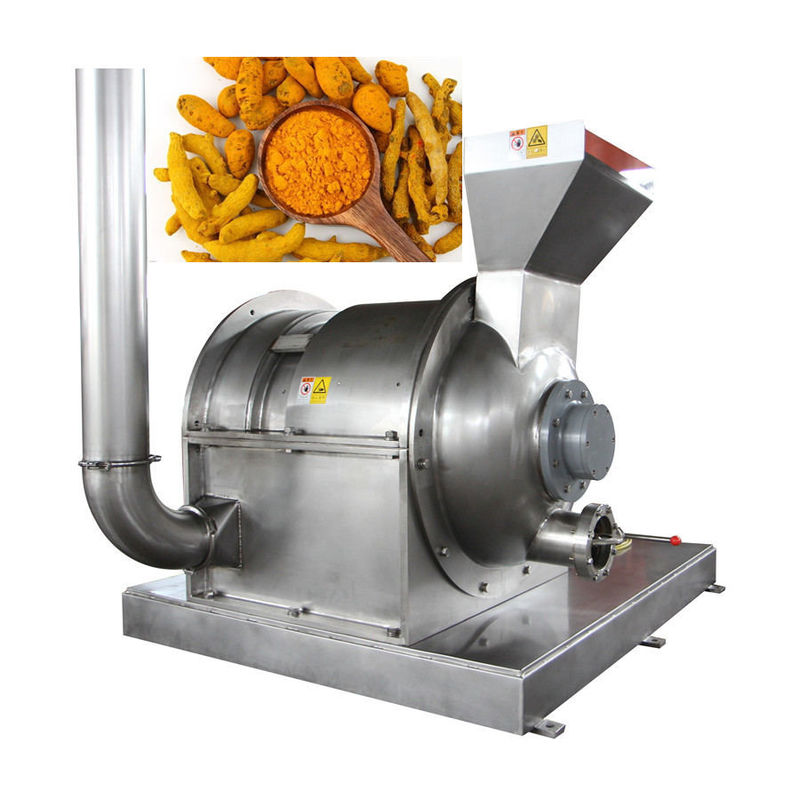

75kw 100-2000kg/H Turmeric Crusher Machine

100-2000 kg/h Efficient Turmeric Crusher Machine For Industry

BSDF turmeric ultrafine crusher is our most advanced hammer mill set. It has a good grinding effect for all kinds of spice(such as chilli, turmeric, coriander seeds), of course, for some other food materials(like chickpea, cassava, feed, herbs,etc), the grinding effect is also good.

Detailed Images:

	Mill part: this is the mill part, It combines corse crusher area, middle fine milling area, and super fine milling area together.
	Work method 1) From right to left, they are coarse crush area,middle fine mill area and fine milling area and blast area. Material fed in will be milled by the three areas to become fine powder. 2) change powder size by changing speed.
	Cyclone part (1) Cyclone can seperate dust from powder(granules) (2) Rotary valve make powder discharge speed even Rotary valve is also made of stainless steel and to clean it and dismantle is convinient.
	Pulse Dust Collecting box (1) Dust is collected inside the dust collecting box. (2} Inside box, there are many dust collecting bags and the bag frames are also made of stainless steel and can be disassembled easily. (3) With pulse-jet cleaning, dust can be collected very conviniently.

Main features:

1) BSDF turmeric micro pulverizer has three knife groups in the mill chamber: Coarse Crusher, Middle Fine Mill and Fine Mill, Normal hammer mill only have one.
2) BSDF doesn't need a sieve or screen mesh in mill chamber, change powder size by changing speed by inverter. Normal hammer mill has.
3) Temperature of BSDF's mill chamber will not rise or only rise a little, quality of powder not be affected by heat. Temperature of normal hammer mill's chamber is much higher.
4) With the same power consumption, BSDF's capacity is much bigger than normal hammer mill.

This machine has a very good effect for milling different kinds of food,like spice,herbs,milk powder and chemicals,feed...etc.

Technical data:

drawing:

Our Services:

1. Pre-sales service:
Inquiry and consulting support with 24 hours;
Machine sample test service;
Factory visit
2. After-sales service:
Instructing how to install and use the machine;
one year warranty;
video support;
engineer is available to go to user's factory to help install and train.

FAQ:

1) Q: How do you pack your machines?
A: If it's a small machine, it's packed in wooden cases.
If it is a large machine or many machines, we will take the container, we will split the machine into several parts, then wrap the machine with wrapping film, and then fix it in the container with wire rope to prevent them from shaking during transportation.
