Product Details:
|
| Product Name: | Chickpea Powder Milling Machine | Capacity: | 100-2000kg/h |
|---|---|---|---|
| Fineness: | 10-120 Mesh | Motor: | 22-75kw |
| Discharge Motor: | 0.75-1.5kw | Blower: | 7.5-18.5 Kw |
| Voltage: | Customized | Package: | Container |
| High Light: | chickpea powder crusher machine,chickpea crusher machine,2000kg/h powder crusher machine |
||
Commercial Chickpea Ultrafine Crusher For Sale

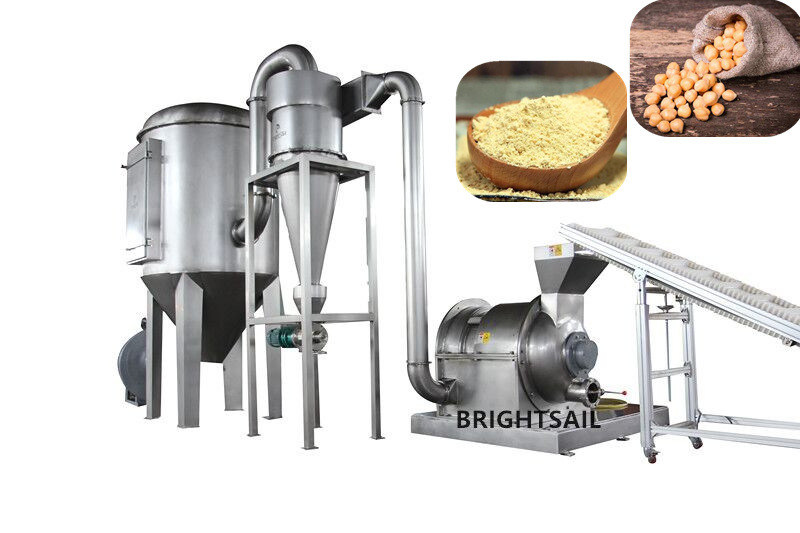

BSDF can make finer powder than traditional hammer mill because of its totally different structure,it combines coarse crusher,middle fine milling and fine milling together, which means material can be milled three times in a very short time, almost at the same time.This chickpea flour mill machinery has mill part, cyclone, dust collecting box, blower and electrical control box. It can easily make turmeric into 60~80mesh powder.It's also one of the most popular products in our company,and our foreign clients are all very satisfied with our products.
Detailed Images:
| |
Mill part: this is the mill part, It combines corse crusher area, middle fine milling area, and super fine milling area together. |
|
Work method 1) From right to left, they are coarse crush area,middle fine mill area and fine milling area and blast area. Material fed in will be milled by the three areas to become fine powder. 2) change powder size by changing speed. |
|
Cyclone part (1) Cyclone can seperate dust from powder(granules) (2) Rotary valve make powder discharge speed even Rotary valve is also made of stainless steel and to clean it and dismantle is convinient. |
|
Pulse Dust Collecting box (1) Dust is collected inside the dust collecting box. (2} Inside box, there are many dust collecting bags and the bag frames are also made of stainless steel and can be disassembled easily. (3) With pulse-jet cleaning, dust can be collected very conviniently. |
Working Method:
The material to be crushed is fed through the feed hole installed at the top, and then sucked into the coarse crushing area for coarse crushing through the negative pressure of the fan. The coarse particles are transported to the second crushing area for the second grinding. After the secondary crushing, the coarse particles and fine particles will be separated by the grading wheel. Then the particles which meet the fine grinding conditions are crushed in the fine grinding area. Large particles that cannot be finely ground remain in the secondary crushing area for re crushing. Under the impeller of the blower, the powder crushed in the fine crushing area will be discharged from the crushing chamber through the negative pressure of the fan and enter the cyclone separator. The fine powder will be discharged through the electric rotary valve at the bottom of the separator. The dusty gas is delivered to the dust collection box. Finally, the bag in the dust collection box will collect the powder, and the clean gas will be discharged from the fan outlet.
Technical data:
| Model | BSDF-350 | BSDF-450 | BSDF-550 | BSDF-650 | BSDF-750 |
| Capacity(kg/h) | 100-200 | 300-500 | 400-800 | 600-900 | 800-1300 |
| Fineness(mesh) | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 |
| Grind motor(kw) | 22 | 37 | 45 | 55 | 75 |
| Discharge motor(kw) | 0.75 | 0.75 | 0.75 | 1.1 | 1.5 |
| Blower(kw) | 7.5 | 15 | 15 | 18.5 | 18.5 |
| Rotor speed(rpm) | 3500-4500 | 3300-4200 | 2900-3600 | 2400-3100 | 2100-2700 |
Our Services:
1. Pre-sales service:
Inquiry and consulting support with 24 hours;
Machine sample test service;
Factory visit
2. After-sales service:
Instructing how to install and use the machine;
one year warranty;
video support;
engineer is available to go to user's factory to help install and train.
