Product Details:
|
| Warranty: | One Year | Capa50-5000 Kg/hcity: | 50-5000 Kg/h |
|---|---|---|---|
| Fineness: | 10-120 Mesh | Material: | SS304/316 |
| Voltage: | Customized | Package: | Container |
| Size: | Customized | Product Name: | Sugar Powder Making Machine |
| High Light: | 5000kg/h powder grinding equipment,50kg/h powder grinding equipment,ss304 powder grinding equipment |
||

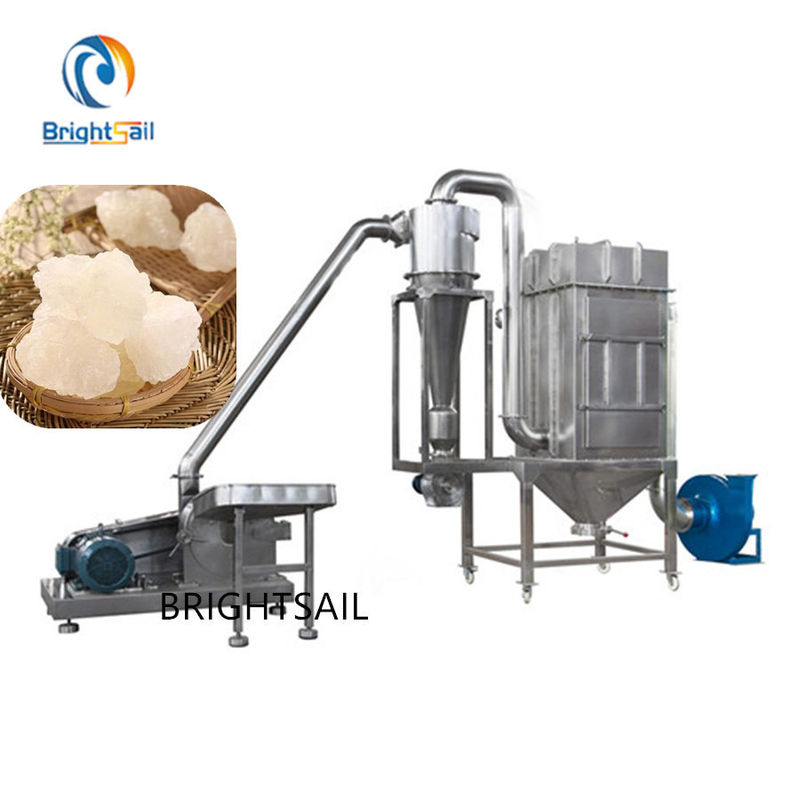

50-5000 kg/h High-Production Sugar Powder Grinding Equipment For Sale
BSG series crusher is a kind of high effcient mill designed and developed by my company,it is widely used in food, chemical and other industry. This grinding machine for icing sugar features compact structure, stable technical performance, wide application.It is very suitable for krystal materials grinding, for example, this grinder can make 1-2 tons sugar powder per hour. And for grinding leaves, this type is also suitable.
Working method:
with a fan in the crusher part, capacity is much bigger than traditional type, and temperature in the crusher chamber is better controled.
(1) Cyclone can seperate dust from powder(granules)
(2) Rotary valve make powder discharge speed even
Main Features:
1) The grinding chamber is equipped with a water cooling system, which can effectively avoid product damage caused by the high temperature during the grinding process.
2) The sieve is made of high quality stainless steel. special design. When you need another sieve-sized powder, you can easily change the sieve.
3) The machine is also equipped with a dust collection system for collecting the fine powder inevitably generated in the grinding process into the dust collector. This process ensures that the final powder discharge of our automatic rotary powder discharge device is more uniform.
4) All stainless steel structures comply with GMP standards, food grade, chemical grade and pharmaceutical grade standards.
Drawing:
Technical data:
| Model | BSG-300 | BSG-400 | BSG-500 | BSG-600 | BSG-700 |
| Speed of principal axis(rpm) | 5300 | 4800 | 3800 | 3300 | 2800 |
| Crusher motor(kw) | 5.5 | 7.5 | 15 | 22 | 30 |
| Blower(kw) | 4 | 5.5 | 7.5 | 11 | 15 |
| Discharge motor(kw) | 0.37 | 0.75 | 0.75 | 0.75 | 1.1 |
| Grinding capacity(kg/h) | 50-500 | 100-1000 | 300-1500 | 500-2500 | 1000-5000 |
Our Services:
1. Pre-sales service:
Inquiry and consulting support with 24 hours;
Machine sample test service;
Factory visit
2. After-sales service:
Instructing how to install and use the machine;
one year warranty;
video support;
engineer is available to go to user's factory to help install and train.
