Product Details:
|
| Warranty: | One Year | Capa50-5000 Kg/hcity: | 50-5000kg/h |
|---|---|---|---|
| Fineness: | 10-120 Mesh | MaterialSS304/316: | SS304/316 |
| Voltage: | Customized | Package: | Container |
| Size: | Customized | Product Name: | Sugar Powder Making Machine |
| High Light: | SS316 fine powder grinding machine,120 mesh Sugar Grinding Equipment,5000kg/h Fine Powder Grinding Machine |
||

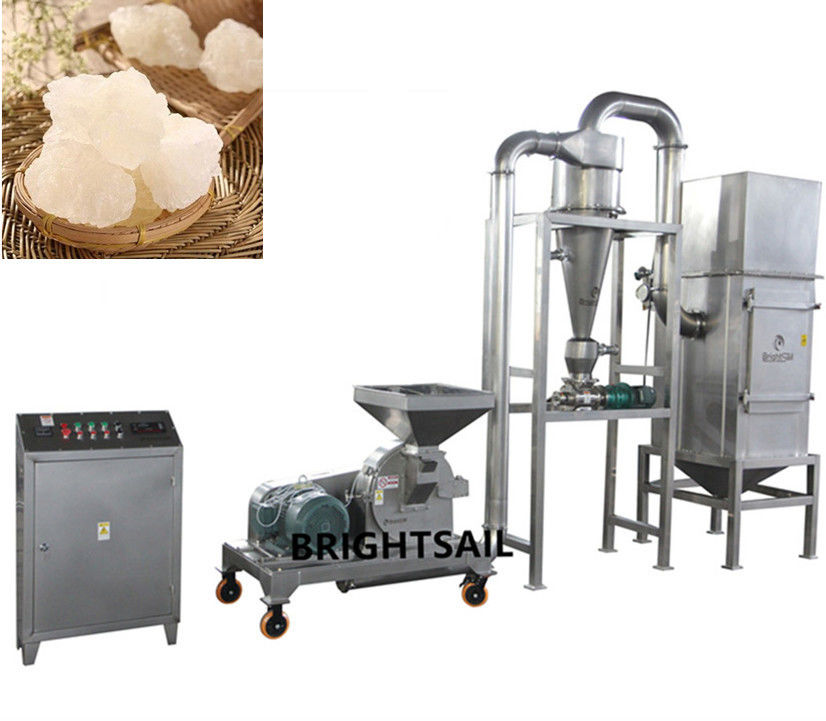

Good Selling SS304/316 Sugar Powder Grinding Machine High-Quality
BSG sugar pulverizer is a kind of high effcient mill designed and developed by my company,it is widely used in food, chemical and other industry. This industrial sugar crushing machine features compact structure, stable technical performance, wide application.It is very suitable for krystal materials grinding, for example, this grinder can make 1-2 tons sugar powder per hour. And for grinding leaves, this type is also suitable.
Working method:
The material enters the grinding chamber through the hopper, and is thrown into the fixed ring gear under the impact of the high-speed rotating disc / hammer, and then it is bounced and cut. At the same time, under the alternating effects of impact, cutting, and grinding forces, the material is finely refined. Under the negative pressure of the fan and the impeller, the powder is absorbed into the cyclone and discharged through the sieve and pipe. Pulse dust collector can collect a small amount of fine dust.
Main Features:
1) Simple structure ,easy in installation and maintenance.
2) Adopting advanced world famous brand motor ,electric parts,bearing and operation parts.
3) No dust during production, and dust can be collected in dust collecting box.
4)During production,temperature remains normal, will not get hot. So material's color and nature won't change.
5) Uniqe design, with same power consumption, it can achieve much bigger capacity.
Drawing:
Technical data:
| Model | BSG-300 | BSG-400 | BSG-500 | BSG-600 | BSG-700 |
| Speed of principal axis(rpm) | 5300 | 4800 | 3800 | 3300 | 2800 |
| Crusher motor(kw) | 5.5 | 7.5 | 15 | 22 | 30 |
| Blower(kw) | 4 | 5.5 | 7.5 | 11 | 15 |
| Discharge motor(kw) | 0.37 | 0.75 | 0.75 | 0.75 | 1.1 |
| Grinding capacity(kg/h) | 50-500 | 100-1000 | 300-1500 | 500-2500 | 1000-5000 |
Certification:
Our Services:
1. Pre-sales service:
Inquiry and consulting support with 24 hours;
Machine sample test service;
Factory visit
2. After-sales service:
Instructing how to install and use the machine;
one year warranty;
video support;
engineer is available to go to user's factory to help install and train.
