Product Details:
|
| Heating Source: | Steam+electricity | Warranty: | One Year |
|---|---|---|---|
| Stainless Steel 304Material: | Stainless Steel 304 | Temperature Range: | 20-160(adjustable) |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| High Light: | ss304 hot air dryer industrial,ss304 industrial hot air dryer,0.45kw hot air dryer industrial |
||

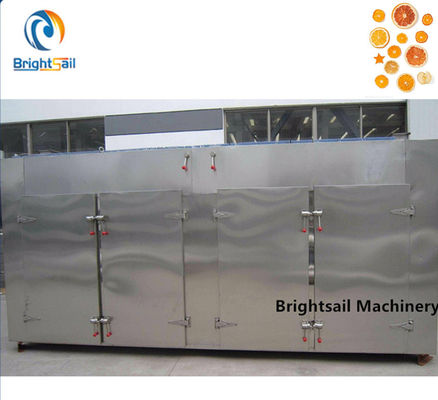

High-Production Industrial Hot Air Dryer For Food For Sale
BSO dryer fruit machine is a multifunctional drying device, which mainly circulates inside the box through the forced hot air heated by the electric heating tube or the steam heat exchanger to enhance the heat transfer and achieve the effect of drying the material. It can be used in many application, like seafood, grains, herbs, spices, fruits and other materials, which widely applied in food, chemical, pharmaceutical and other industry.
BSO drying machine applies a low-noise and high temperature-proof axial flow blower and an automatic temperature control system which is fully sealed, making that the heat efficiency of the drying oven increases from 3-7% of traditionaloven to 35-45% of the present one. Our products can be customized according to the needs.
Working Method:
The basic principle of the BSO series hot air circulation drying oven is to use steam or electricity as heat energy, and heat is generated by a steam radiator or electric heating element. The fan performs convective heat transfer, heat is transferred to the material, and fresh air is continuously added to the oven to discharge humidity Gas is blown from the oven. When drying, maintain proper relative temperature and humidity.
Main Features:
1. The entire machine and baking tray made of stainless steel.
2. Most of hot air inside the loop, high thermal efficiency, energy conservation.
3. The use of forced ventilation in the box high and adjustable air board, dry materials evenly.
4. Source may be steam or electricity.
Technical Data:
| Model | BSO-O | BSO-I | BSO-II | BSO-III | BSO-IV |
| Capacity(kg/batch) | 60 | 120 | 240 | 360 | 480 |
| Blower power(kw) | 0.45 | 0.45 | 0.9 | 1.35 | 1.8 |
| Steam expend(kg/h) | 15 | 20 | 40 | 60 | 80 |
| Electric-heating power(kw) | 9 | 15 | 30 | 45 | 60 |
| Down temp(℃) | ±2 | ±2 | ±2 | ±2 | ±2 |
| Tray(piece) | 24 | 48 | 96 | 144 | 192 |
| Overall size(L*W*H)(mm) | 1400*1200*2000 | 1200*2300*2000 | 2300*2200*2000 | 3200*2200*2000 | 4280*2200*2000 |
| Weight(kg) | 820 | 1500 | 1800 | 2200 | 2800 |
Our Company:
Brightsail Industrial Group Co., Ltd. Jiangyin Brightsail Machinery Co., Ltd. and Jiangyin Hengsheng Steel Structure Co., Ltd. were established in 2002 and are the trading department of Jiangyin Brightsail Machinery Co., Ltd.
We provide professional overall solutions for powder processing, crushers, mixers, screens, welding services, welding machines, chemical powders...
At present, our products have been sold to more than 40 countries around the world. We have been committed to developing new and advanced machine technologies and methods, because our goal is to become your trustworthy provider of creative and value-added process solutions.
Our Services:
1. Pre-sale service:
24-hour inquiry and consultation support;
Machine sample testing service;
Factory visit
2. After-sales service:
Guide how to install and use the machine;
one-year warranty; video support;
engineers can go to the user's factory to assist in installation and training.
