Product Details:
|
| Product Name: | Spice Grinder Crusher Pulverizer Grinding Machine | Material: | SS304/316 |
|---|---|---|---|
| Warranty: | One Year | Feed Size: | <100mm |
| Output Size: | 0.5-20mm | Capacity: | 50-1000 Kg/h |
| High Light: | SS316 chili crusher,SS316 chilli crusher,50kg/H Chilli Crusher |
||

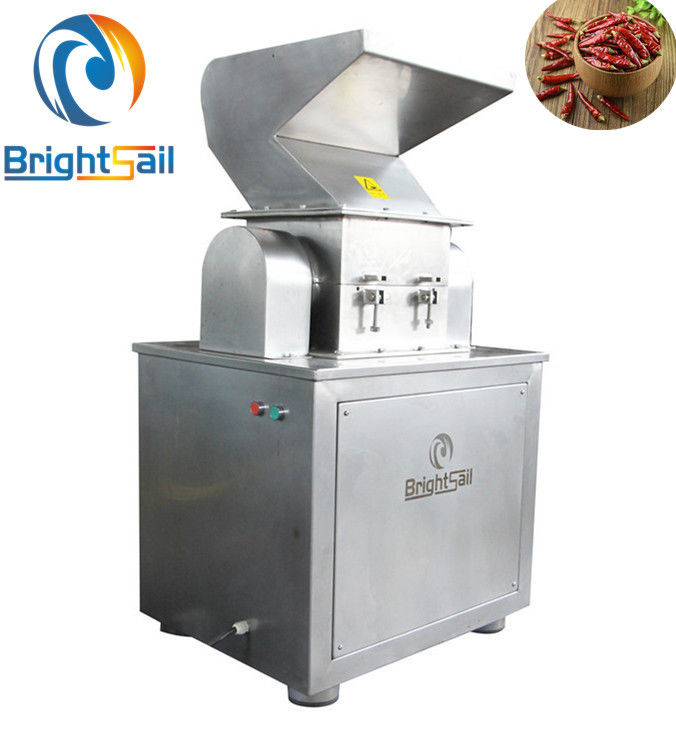

Multifunctional SS304/316 Electric Chili Crusher Easy To Operate
BSC chili granulators is widely used in pharmaceutical, chemical, food and other industries for crushing dry and fragile materials.Materials with low softening point and high viscosity are not suitable for this machine.
Our BSC granulation machine is suitable for granulation or primary grinding (making large materials into small particles), such as pepper flakes, ginger granules, arabic gum, dried flower flakes, etc. There are two types for you to choose, one is vertical (discharge opening is behind the machine), and the other is desktop (discharge opening is below the machine).
Working Method:
This granulator machine is a horizontal grinding machine used to cut large pieces of material into small pieces. There is a counter wheel at the shaft end, which will not be blocked during operation. The raw materials are injected into the hopper, and the fixed rotating blade is used for crushing and cutting in the crushing cavity. Through the rotating centrifugal force, the material automatically flows to the outlet. The size of the final product is controlled by the screen. The blade is made of durable hard alloy steel.
Main Features:
1. The machine and the parts in contact with the crushed materials are made of stainless steel, which has good corrosion resistance.
2. In order to facilitate cleaning, the shell is fully enclosed.
3. The inner wall has been treated and the surface is smooth and smooth, which ensures that the production of medicines, food, chemicals and other materials is more in line with the national "GMP" standard.
Technical Data:
|
Model
|
BSC-200
|
BSC-300
|
BSC-400
|
BSC-600
|
|
Capacity(kg/h)
|
80-300
|
100-800 |
200-1000
|
500-1500
|
|
Size of input granules (mm)
|
<100
|
<100
|
<100
|
<100
|
|
Crushing Fineness(mm)
|
0.5-20
|
0.5-20 | 0.5-20 | 0.5-20 |
|
Speed of principal axis(rpm)
|
960
|
960
|
960
|
960
|
|
Motor power(KW)
|
3
|
5.5
|
7.5
|
11
|
|
Overall Size(L*W*H) (mm)(Type B)
|
900*600*1140
|
900*700*1440
|
900*800*1440 |
1000*900*1440
|
|
Weight(Kg)
|
200
|
300
|
380
|
500
|
Good Comment From Customer:
Packaging&Shipping:
1.We provide shipping methods:Courier service,Air transport,Sea Transport
2.Can accept order:Full container cargo load,Less container load
3.Delivery term :EXW,FOB,CIF,CNF etc.
We always choose the most economical and reliable shipping company to make sure you receive the goods in time. The BL and tracking number will be provided to you once the consignment is shipped.
