Product Details:
|
| Product Name: | Spice Grinder Crusher Pulverizer Grinding Machine | Material: | SS304/316 |
|---|---|---|---|
| Warranty: | One Year | Feed Size: | <100mm |
| Output Size: | 0.5-20mm | Capacity: | 50-1000kg/h |
| High Light: | SS304 Tea Leaf Crushing Machine,1000kg/H Tea Leaf Crushing Machine,0.5mm Tea Leaf Crushing Machine |
||

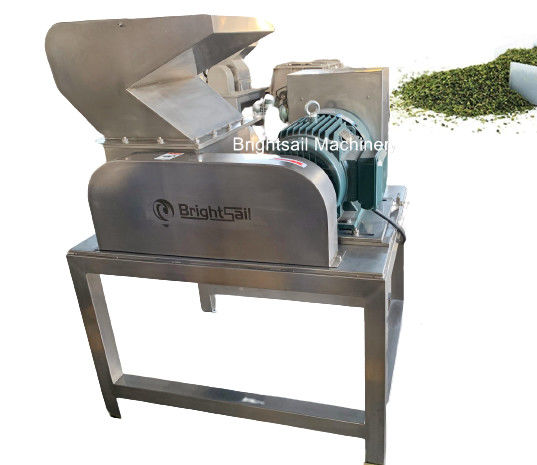

Convenient Operation Tea Leaf Crushing Machine With Long Service Life
BSC tea crushing machine is widely used in pharmaceutical, chemical, food and other industries for crushing dry and fragile materials.Materials with low softening point and high viscosity are not suitable for this machine.
Our BSC granulation machine is suitable for granulation or primary grinding (making large materials into small particles), such as pepper flakes, ginger granules, arabic gum, dried flower flakes, etc. There are two types for you to choose, one is vertical (discharge opening is behind the machine), and the other is desktop (discharge opening is below the machine).
Working Method:
This tea leaves crusher is a horizontal grinding machine used to cut large pieces of material into small pieces. There is a counter wheel at the shaft end, which will not be blocked during operation. The raw materials are injected into the hopper, and the fixed rotating blade is crushed and cut in the crushing cavity. Through the rotating centrifugal force, the material automatically flows to the outlet. The size of the final product is controlled by the screen. The blade is made of durable alloy steel.
Main Features:
1) Simple structure ,easy in installation and maintation.
2) Easy to clean and low noise.
3) Stable running and has good wearability.
4) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
Technical Data:
|
Model
|
BSC-200
|
BSC-300
|
BSC-400
|
BSC-600
|
|
Capacity(kg/h)
|
80-300
|
100-800 |
200-1000
|
500-1500
|
|
Size of input granules (mm)
|
<100
|
<100
|
<100
|
<100
|
|
Crushing Fineness(mm)
|
0.5-20
|
0.5-20 | 0.5-20 | 0.5-20 |
|
Speed of principal axis(rpm)
|
960
|
960
|
960
|
960
|
|
Motor power(KW)
|
3
|
5.5
|
7.5
|
11
|
|
Overall Size(L*W*H) (mm)(Type B)
|
900*600*1140
|
900*700*1440
|
900*800*1440 |
1000*900*1440
|
|
Weight(Kg)
|
200
|
300
|
380
|
500
|
Good Comment From Customer:
Packaging&Shipping:
*Usually small machines are packed in wooden boxes, we can also pack according to customers' special requirements.
*If the machine is relatively large, we will use steel wires and nails to fix the machine in the container. The machine will not move inside the container.
